| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 001 |
33002278 |
|
Overlay, Control Panel |
10 |
Appelez-nous
|
- |
|
|
|
| 002 |
WPW10131119 |
 |
Screw, Control Panel Overlay (Replaces: 215506) |
10 |
|
|
$ 6.26 |
|
|
| 003 |
WPW10133268 |
 |
Cover, Display (Replaces: 33002150) |
10 |
|
|
$ 63.37 |
|
|
| 004 |
33002003 |
|
Fastener Clip, Control Panel |
10 |
Appelez-nous
|
- |
|
|
|
| 004 |
33002264 |
|
Panel, Control |
10 |
Appelez-nous
|
- |
|
|
|
| 005 |
WPW10131115 |
|
Bezel (Replaces: 22001976) |
10 |
|
|
$ 7.63 |
|
|
| 006 |
WPW10131119 |
|
Screw, Control Panel (torx) (Replaces: 215506) |
10 |
|
|
$ 6.26 |
|
|
| 007 |
33001132 |
|
Plug, Sight Hole (wht) |
10 |
Appelez-nous
|
- |
|
|
|
| 008 |
33001977 |
|
Fastener, Control Panel |
10 |
Appelez-nous
|
- |
|
|
|
| 009 |
33002178 |
|
Switch, Push Button |
10 |
|
|
$ 38.65 |
|
|
| 010 |
33002155 |
|
Plate, Control Mounting |
10 |
Appelez-nous
|
- |
|
|
|
| 011 |
WPW10133278 |
 |
Switch, Membrane (Replaces: 33002152) |
10 |
|
|
$ 104.73 |
|
|
| 012 |
33002154 |
|
Board Assy., Circuit |
10 |
Appelez-nous
|
- |
|
|
|
| 013 |
33001204 |
|
Standoff, Circuit Board |
10 |
Appelez-nous
|
- |
|
|
|
| 013 |
M0282005 |
 |
Locknut, Washer (Replaces: 912077) |
10 |
|
|
$ 7.07 |
|
|
| 014 |
33002262 |
|
Panel, Access (wht) |
10 |
Appelez-nous
|
- |
|
|
|
| 015 |
WPW10133264 |
 |
Lock, Access Door (Replaces: Y206081) |
10 |
|
|
$ 125.12 |
|
|
| 016 |
W11165684 |
|
Locking Cam (Replaces: 213750) |
10 |
|
|
$ 8.20 |
|
|
| 017 |
33001981 |
|
Wire, Ground |
10 |
Appelez-nous
|
- |
|
|
|
| 018 |
WPW10447152 |
 |
Switch, Sensor (Replaces: 33002117) |
10 |
|
|
$ 37.08 |
|
|
| 019 |
912012 |
|
Screw, Programming Switch |
10 |
Appelez-nous
|
- |
|
|
|
| 020 |
33001982 |
|
Bracket, Switch Mounting |
10 |
Appelez-nous
|
- |
|
|
|
| 021 |
33001980 |
|
Fastener, Access Panel |
10 |
|
|
$ 7.64 |
|
|
| 021 |
33002004 |
|
Clip, Fastener |
10 |
Appelez-nous
|
- |
|
|
|
| 022 |
WPW10131119 |
|
Screw, Access Panel (torx) (Replaces: 215506) |
10 |
|
|
$ 6.26 |
|
|
| 023 |
W11573574 |
 |
Screw, Security (Replaces: 22001995) |
10 |
|
Immediately |
$ 12.62 |
|
|
| 023 |
33002060 |
|
Bracket, Security |
10 |
Appelez-nous
|
- |
|
|
|
| 023 |
NLA |
|
Nut, Security |
10 |
Appelez-nous
|
- |
|
|
|
| 024 |
22003819 |
|
Wire Harness, Lower Commercial |
10 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002180 |
|
Wire Harness, Main (upr) |
10 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002181 |
|
(upr) |
10 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002279 |
|
Wire Harness, Main (upr) |
10 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002282 |
|
(upr) |
10 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002434 |
|
Harness, Reader (kit) |
10 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002872 |
|
Harness, Wire Upper Gas |
71 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002875 |
|
Harness, Wire Upper Gas Canada |
70 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002877 |
|
Harness, Wire Upper Elec |
71 |
Appelez-nous
|
- |
|
|
|
| 024 |
33002879 |
|
Harness, Wire Upper Elec |
70 |
Appelez-nous
|
- |
|
|
|
| 025 |
22002782 |
|
Pad, Foam (sound Dampener) |
70 |
|
|
$ 5.53 |
|
|
| 025 |
22003858 |
|
Emi Suppression Filter, 16a |
70 |
|
|
$ 51.54 |
|
|
| 025 |
33002151 |
|
Manual, Use & Care |
10 |
Appelez-nous
|
- |
|
|
|

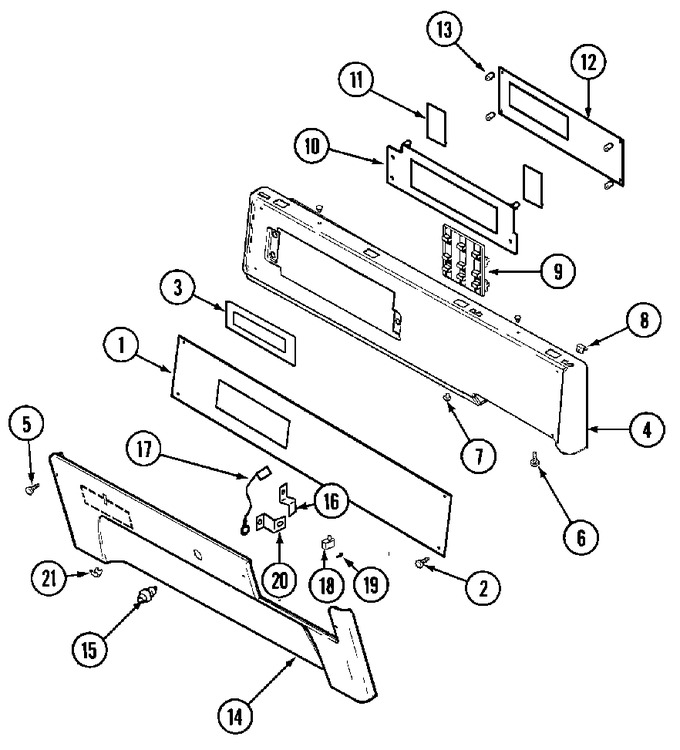

View Diagram in Separate Window
