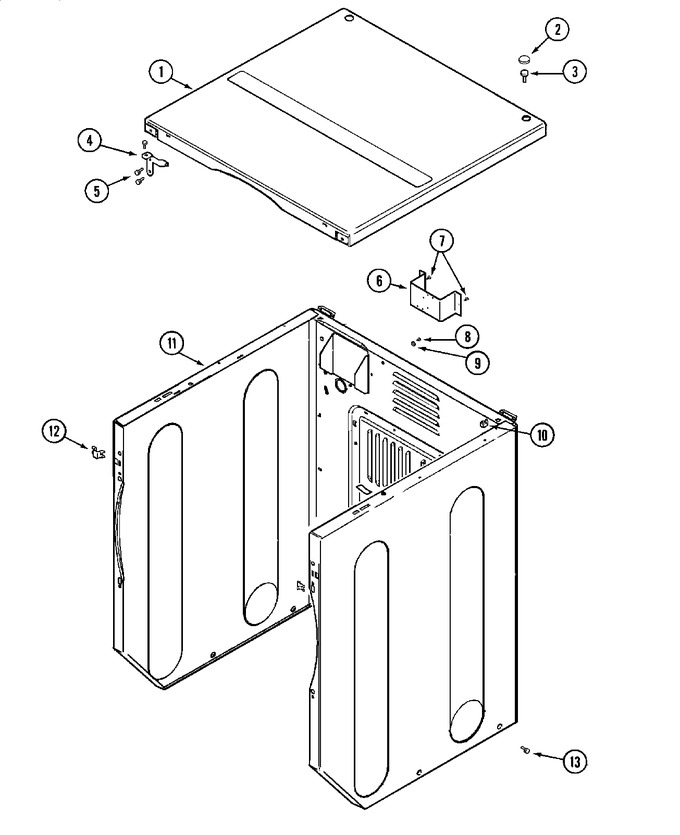

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33001995		Cover, Top (wht)	10	Appelez-nous	-
002	33001997		Plug, Hole	10	Appelez-nous	-
003	22001883		Screw, Top Cover	10	Appelez-nous	-
004	33001998		Bracket, Top Cover (lt)	10	Appelez-nous	-
004	33001999		Bracket, Top Cover (rt)	10	Appelez-nous	-
005	W11573574		Screw, Top Cover Bracket   (Replaces: 22001995)	10		Immediately	$ 12.62
006	NLA		Bracket, Terminal Block----na	10	Appelez-nous	-
007	W11573574		Screw, Terminal Block Bracket   (Replaces: 22001995)	10		Immediately	$ 12.62
008	NLA		Screw, Ground Lug	10	Appelez-nous	-
009	NLA		Washer, Ground Lug	10	Appelez-nous	-
010	WP22001502		Fastener, U-nut   (Replaces: 22001502)	10			$ 8.26
011	NLA		Cabinet Assy (wht-as Pk)	10	Appelez-nous	-
012	33001980		Clip, Access Panel	10			$ 7.64
013	213007		Screw, Cabinet	10			$ 10.99
