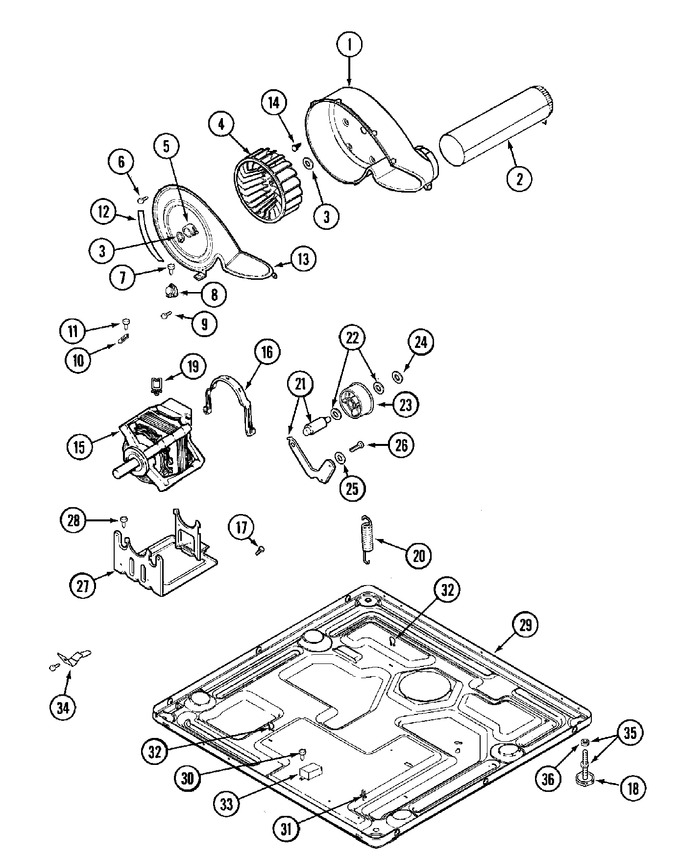

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP33001789		Housing, Blower   (Replaces: 33001789)				$ 128.00
002	W11573574		Screw   (Replaces: 22001995)			Immediately	$ 12.62
002	33001799		Outlet Duct Assembly				$ 81.40
003	WP9703438		Ring, Retaining   (Replaces: 410233)			Immediately	$ 3.81
004	33001790		Wheel, Blower			Immediately	$ 44.73
004	WP33002797		Wheel, Blower   (Replaces: 33002797)	68		Immediately	$ 93.13
005	WP312967		Clamp, Blower Housing   (Replaces: 312967)			Immediately	$ 10.68
006	WP33002917		Screw (hex Head)   (Replaces: 33001855)			Immediately	$ 6.90
007	Y313561		Screw----na				$ 5.27
008	WP694674		Cycling Thermostat 140 Deg.   (Replaces: 303392)			Immediately	$ 45.46
008	WP33303391		Thermostat, Cycling   (Replaces: 33303391)				$ 127.00
009	WP489128		Screw   (Replaces: 22001996)				$ 9.79
010	WP33001762		Fuse, Thermal (w` Bracket)   (Replaces: 33001762)			Immediately	$ 49.84
011	NLA		Screw		Appelez-nous	-
012	33002044		Guide		Appelez-nous	-
013	33002711		Cover, Blower Housing		Appelez-nous	-
014	314818		Screw		Appelez-nous	-
015	W10197708		Motor & Pulley Assembly (50hz)   (Replaces: 33002479)			Immediately	$ 403.97
015	W10197708		Motor, Drive 50hz   (Replaces: 33002796)	68		Immediately	$ 403.97
016	WPY015825		Clip, Motor   (Replaces: 33002221)				$ 21.03
017	WP488234		Screw, Ground Wire   (Replaces: 910343)				$ 6.07
018	WP210684		Foot, Rubber   (Replaces: 210684)			Immediately	$ 14.09
019	33002040		Clip, Wire Harness		Appelez-nous	-
020	33002157		Grommet		Appelez-nous	-
020	33002459		Spring, Idler   (Replaces: 33002460)				$ 6.94
020	33002461		Plug For Spring		Appelez-nous	-
021	WP6-3705180		Idler Arm & Shaft Assy.   (Replaces: 33001840)			Immediately	$ 44.32
022	WPY312527		Washer, Idler Shaft (qty-1)   (Replaces: Y312527)			Immediately	$ 10.01
023	WP6-3700340		Bearing, Idler Assembly   (Replaces: 33001783)			Immediately	$ 24.98
024	WP354987		Retaining Ring, Idler Shaft   (Replaces: 312958)			Immediately	$ 10.58
025	WP315772		Sleeve, Idler Arm   (Replaces: 315772)			Immediately	$ 10.39
026	WPY014874		Screw   (Replaces: Y014874)				$ 6.98
027	33002466		Support, Motor		Appelez-nous	-
028	Y313561		Screw----na				$ 5.27
029	WP90767		Screw-gas Valve To Bracket   (Replaces: 314568)			Immediately	$ 7.04
029	33002048		Fastener, Push		Appelez-nous	-
029	33002050		Protector, Harness		Appelez-nous	-
029	33002467		Base (upr)		Appelez-nous	-
029	NLA		Base, (lwr)----na		Appelez-nous	-
030	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
031	315471		Retainer, Wire		Appelez-nous	-
032	410490		Spring, Wire Harness		Appelez-nous	-
033	315218		Shield, Xfmer		Appelez-nous	-
033	33001948		Transformer Lwr		Appelez-nous	-
033	WPW10133285		Transformer   (Replaces: 33002508)				$ 184.03
034	W11573574		Screw   (Replaces: 22001995)			Immediately	$ 12.62
034	22002239		Clip, Lower Front Panel				$ 5.84
034	22002244		Clip, Grounding		Appelez-nous	-
034	33002757		Bracket, Rh, Base To Support		Appelez-nous	-
034	33002758		Bracket, Lh, Base To Support		Appelez-nous	-
035	WP8563585		Adjustable Leg & Nut   (Replaces: 22001915)			Immediately	$ 13.28
036	WP62739		Nut   (Replaces: Y052740)				$ 6.85
