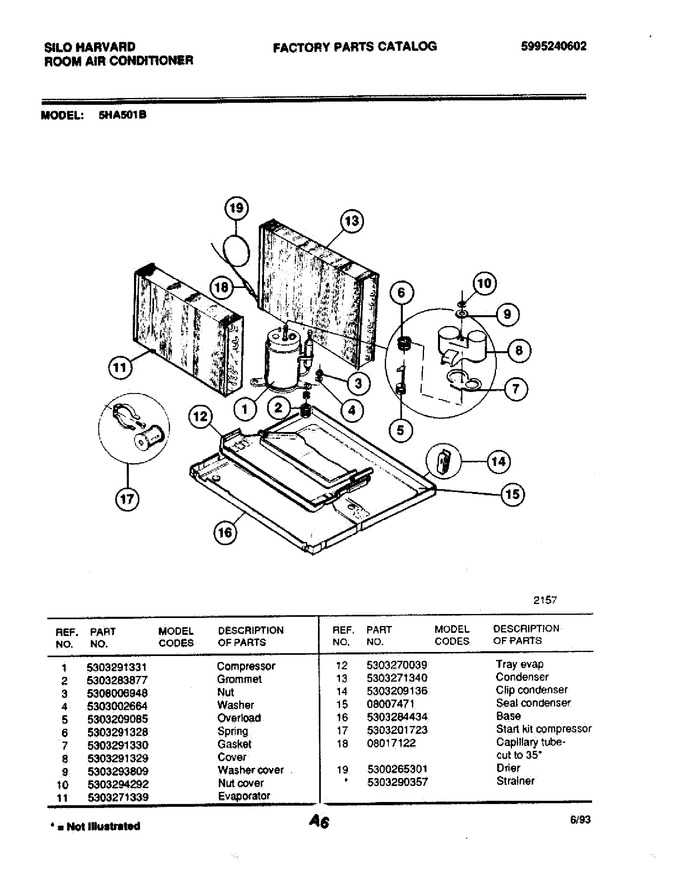

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303291331 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 4 | 5303002664 | Washer |
|
- | |||||
| 5 | 5303209085 | Overload |
|
- | |||||
| 6 | 5303291328 | Spring |
|
- | |||||
| 7 | 5303291330 | Gasket |
|
- | |||||
| 8 | 5303291329 | Cover |
|
- | |||||
| 9 | 5303293809 | Washer-cover |
|
- | |||||
| 10 | 5303294292 | Nut-cover |
|
- | |||||
| 11 | 5303271339 | Evaporator |
|
- | |||||
| 12 | 5303270039 | Tray Evap |
|
- | |||||
| 13 | 5303271340 | Condenser |
|
- | |||||
| 14 | 5303209136 | Clip-condenser |
|
- | |||||
| 15 | 08007471 | Seal Condenser |
|
- | |||||
| 16 | 5303284434 | Base |
|
- | |||||
| 17 | 5303201723 | Start Kit Compressor |
|
- | |||||
| 18 | 08017122 | Capillary Tube-cut To 35`` |
|
- | |||||
| 19 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 5303290357 | Strainer |
|
- |
