SELECT A DIAGRAM

01 - Control Panel


02 - Cabinet Front


03 - Cabinet Rear


04 - Front Panel


05 - Door


06 - Tumbler


07 - Gas Valve


08 - Blower


09 - Base


10 - Supplemental Information


11 - Wiring Information(gas)


12 - Series 18 Wiring Info(gas)

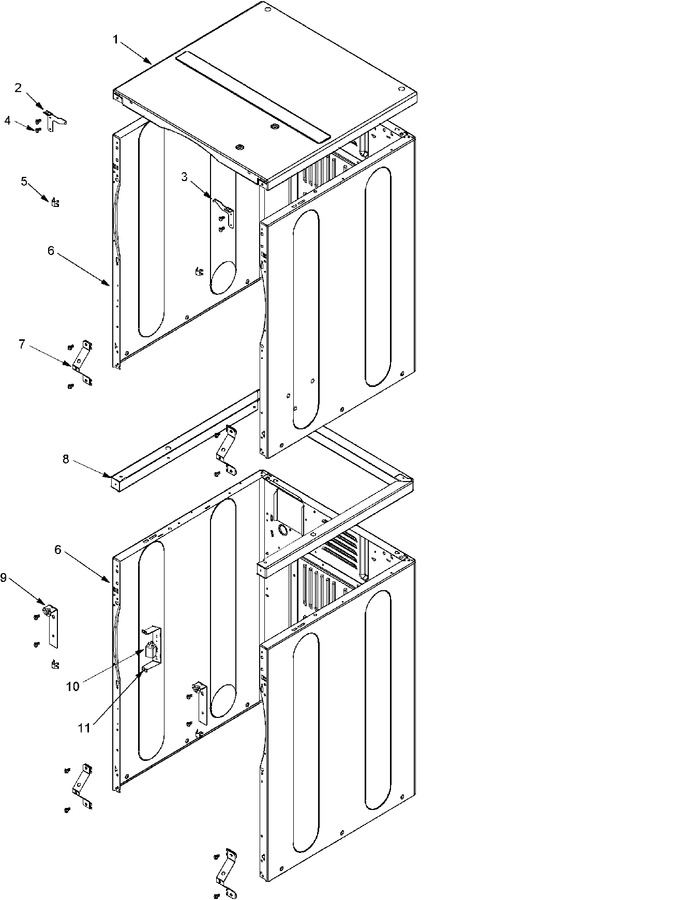

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22001402		Screw	10	Appelez-nous	-
001	33002124		Cover, Top (wht)	10	Appelez-nous	-
002	33002818		Bracket, Lh Upper Front Panel	10	Appelez-nous	-
003	33002819		Bracket, Rh Upper Front Panel	10	Appelez-nous	-
004	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
005	33001980		Clip, Access Panel	10			$ 7.64
006	NLA		Cabinet Assy (wht-as Pk)	10	Appelez-nous	-
007	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
007	22002425		Bracket, ``v``	10	Appelez-nous	-
008	22001402		Screw	10	Appelez-nous	-
008	33002820		Support Weld Ass`y	10	Appelez-nous	-
009	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
009	33002821		Bracket, Front Lower Panel	10	Appelez-nous	-
010	206824		Relay, Spst 24vdc	10	Appelez-nous	-
010	WP3177991		Screw   (Replaces: 22001078)	10		Immediately	$ 6.47
010	306199		Relay, Heater	10			$ 42.40
011	WP3177991		Screw   (Replaces: 22001078)	10		Immediately	$ 6.47
011	314627		Relay Bracket	10	Appelez-nous	-
011	33002002		Bracket, Relay (upr)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
