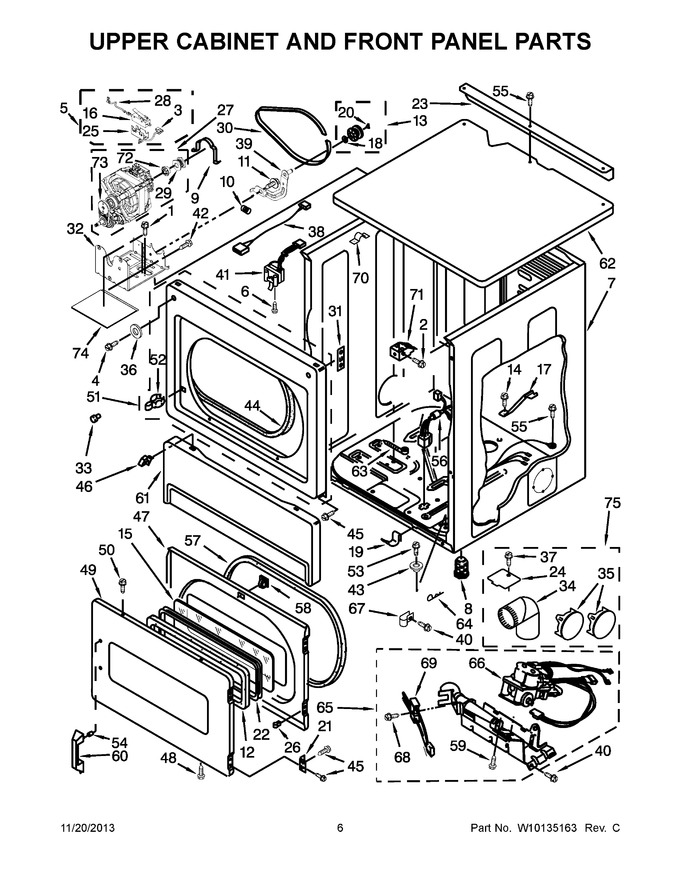

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.07 | ||||
| 2 | 681615 | Screw (Replaces: 3391915) |
|
$ 12.49 | |||||
| 3 | 8539892 | Wire, Motor To Belt Switch |
|
- | |||||
| 4 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.25 | |||||
| 5 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 23.76 | |||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 7 | 3978859 | Cabinet (upper) |
|
- | |||||
| 8 | WP689172 | Foot, Dryer Plastic (Replaces: 689172) |
|
$ 73.30 | |||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | 3392915 | Gasket, Window |
|
$ 58.46 | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 15 | 3392918 | Window |
|
- | |||||
| 16 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 89.24 | |||||
| 17 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 18 | WP233520 | Washer (plastic) (Replaces: 233520) |
|
Immediately | $ 7.16 | ||||
| 19 | WP297092 | Clip (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 21 | W11175815 | Hinge & Pin Assembly (silver) (Replaces: 3389247) |
|
$ 73.27 | |||||
| 22 | 3392914 | Frame, Window |
|
- | |||||
| 23 | 3979115 | Bracket, Angle |
|
- | |||||
| 24 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 | |||||
| 25 | 8564011 | Bracket, Switch |
|
$ 16.35 | |||||
| 26 | 3389249 | Nut, ``u`` |
|
- | |||||
| 27 | W11234001 | Motor Assembly 60 Hz. (Replaces: W10139766) |
|
Immediately | $ 371.89 | ||||
| 28 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 31 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 10.00 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 113.26 | |||||
| 33 | 693152 | Bumper |
|
$ 9.86 | |||||
| 34 | 279731 | Elbow (4``) |
|
- | |||||
| 35 | W10470674 | Multivent Plug (white) (Replaces: 697750) |
|
Immediately | $ 68.99 | ||||
| 36 | W11089212 | Washer (Replaces: 3392186) |
|
$ 8.70 | |||||
| 37 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.01 | ||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 75.36 | |||||
| 39 | WPW10344192 | Assembly, Idler (Replaces: W10141380) |
|
Immediately | $ 81.06 | ||||
| 40 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 41 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 50.08 | ||||
| 42 | 777849 | Screw (Replaces: W10002600) |
|
$ 6.31 | |||||
| 43 | 3389233 | Bushing |
|
- | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 6.81 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 47 | W10244331 | Door, Rear (Replaces: 3392905) |
|
- | |||||
| 48 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 49 | W10322548 | Door, Front (Replaces: 3392880) |
|
- | |||||
| 50 | 718032 | Screw |
|
- | |||||
| 51 | 3393081 | Panel, Front |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 53 | 3400523 | Bolt, Security |
|
- | |||||
| 54 | 3393933 | Fastener |
|
- | |||||
| 55 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 56 | W10169686 | Harness (upper) |
|
$ 280.15 | |||||
| 57 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 117.54 | |||||
| 58 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 59 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 6.47 | ||||
| 60 | WP3392906 | Handle, Door (Replaces: 3392906) |
|
$ 74.66 | |||||
| 61 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 62 | 3389351 | Top (white) |
|
- | |||||
| 63 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 28.66 | |||||
| 64 | 63823 | Cotter Pin |
|
- | |||||
| 65 | W11676916 | Burner Assembly (60 Hz) (Replaces: W10135231) |
|
$ 226.06 | |||||
| 66 | WPW10141728 | Valve, Gas (60 Hz -complete) (Replaces: W10141728) |
|
$ 308.36 | |||||
| 67 | 3387561 | Clamp, Pipe |
|
- | |||||
| 68 | WPW10366705 | Screw (Replaces: 3393909) |
|
$ 6.75 | |||||
| 69 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 70 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 71 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 72 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 73 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 31.71 | ||||
| 74 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 19.96 | |||||
| 75 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 68.99 |
