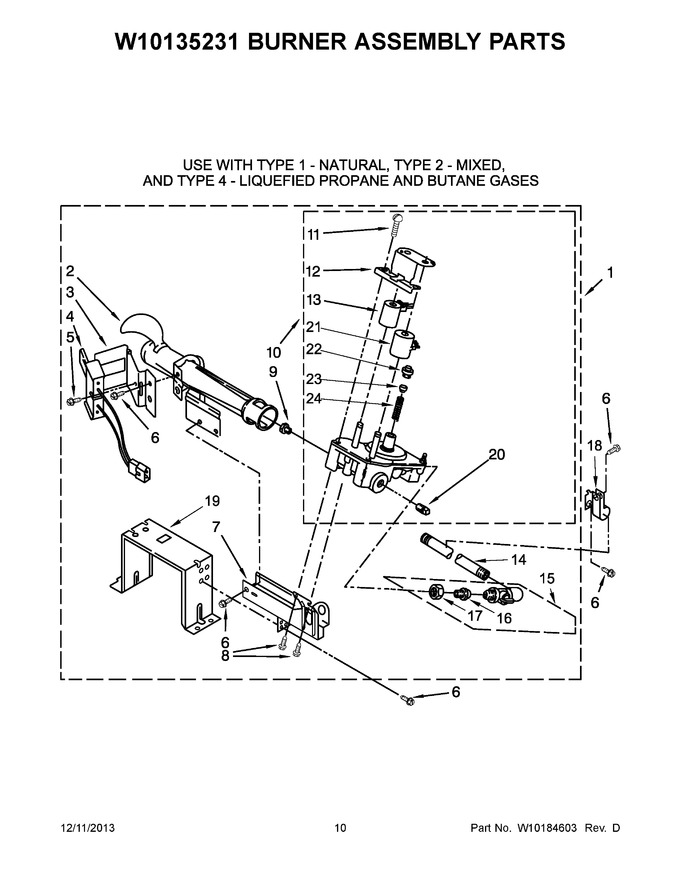

06 - W10135231 Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11676916		Burner Assembly (60 Hz)   (Replaces: W10135231)				$ 226.06
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 6.47
9	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 31.37
9	234870		Orifice, Burner (type 1 (natural))				$ 110.82
10	WPW10141728		Valve, Gas (60 Hz -complete)   (Replaces: W10141728)				$ 308.36
11	694421		Screw, Coil		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 29.57
14	W10110395		Pipe, Gas Supply		Appelez-nous	-
15	697441		Valve, Gas		Appelez-nous	-
16	3393767		Pipe, Tail				$ 123.97
17	233076		Nut, Compression				$ 43.19
18	3387561		Clamp, Pipe		Appelez-nous	-
19	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
21	279834		Coil, 60 Hz (split) (3terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 29.57
22	WP694424		Leak, Limiter   (Replaces: 694424)				$ 31.11
23	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
24	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
NI	N/P		Following Parts Not Illustrated,		Appelez-nous	-
NI	W10402145		Conversion Kit (type 1 And 2) To Type L.p.g.   (Replaces: W10135245)				$ 97.89
