SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts

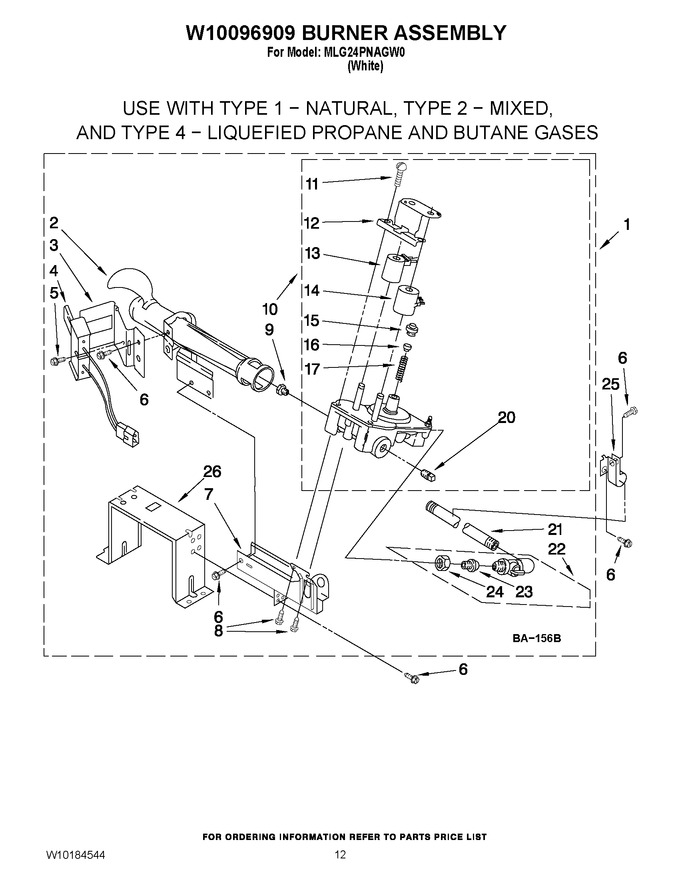

06 - W10096909 Burner Assembly


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11676916		Burner Assembly 60 Hz. (type 1, 2 & 3) (white Rodgers)   (Replaces: W10135231)				$ 226.06
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw, 10-16 X 1/2   (Replaces: 3387057)			Immediately	$ 6.47
9	234870		Orifice, Burner (type 1)				$ 110.82
9	WP234868		Orifice, Burner (type 2)   (Replaces: 234868)				$ 31.37
10	WPW10141728		Valve Gas 60 Hz. (complete)   (Replaces: W10141728)				$ 308.36
11	694421		Screw, 8-32 X 1/2		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 29.57
14	279834		Coil, 60 Hz.(split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 29.57
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 31.11
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
21	W10110395		Pipe, Gas Supply		Appelez-nous	-
22	697441		Valve & Union Shut-off		Appelez-nous	-
23	3393767		Pipe, Tail				$ 123.97
24	233076		Nut, Compression				$ 43.19
25	3387561		Clamp, Pipe		Appelez-nous	-
26	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
NI	W10436933		Conversion Kit (type 1 And 2) To Type (4) L.p.g.				$ 54.23

    View Diagram in Separate Window       Print Part List
