SELECT A DIAGRAM

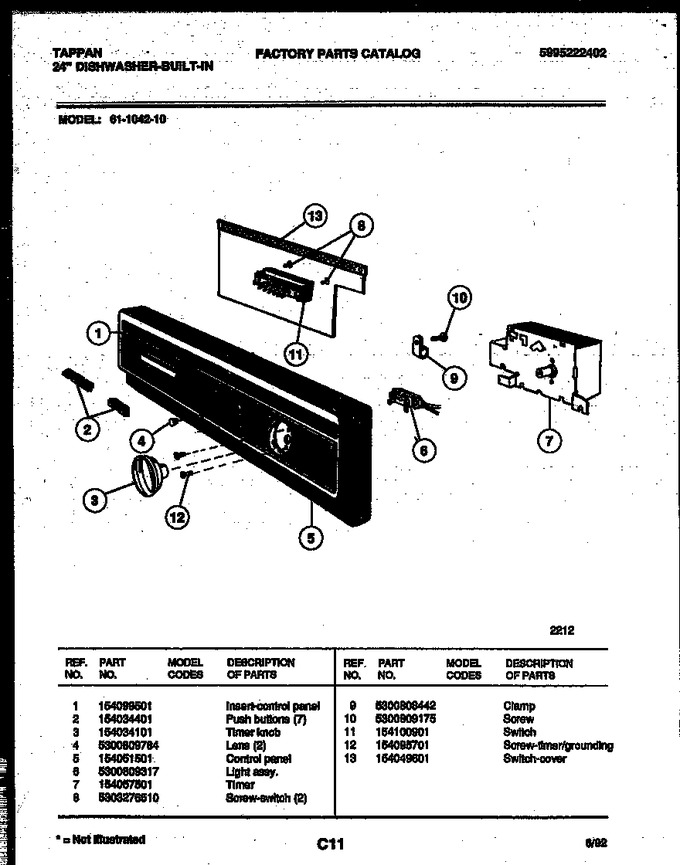

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154099501 | Insert-control Panel |
|
- | |||||
| 2 | 154034401 | Push Buttons (7) |
|
- | |||||
| 3 | 154034101 | Timer Knob |
|
- | |||||
| 4 | 5300809784 | Lens (2) |
|
- | |||||
| 5 | 154051501 | Control Panel |
|
- | |||||
| 6 | 5300809317 | Light Assy |
|
- | |||||
| 7 | 154057501 | Timer |
|
- | |||||
| 8 | 5303276510 | Screw-switch (2) |
|
- | |||||
| 9 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 10 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 11 | 154100901 | Switch |
|
- | |||||
| 12 | 154095701 | Screw-timer/grounding |
|
$ 10.34 | |||||
| 13 | 154049601 | Switch-cover |
|
- |
