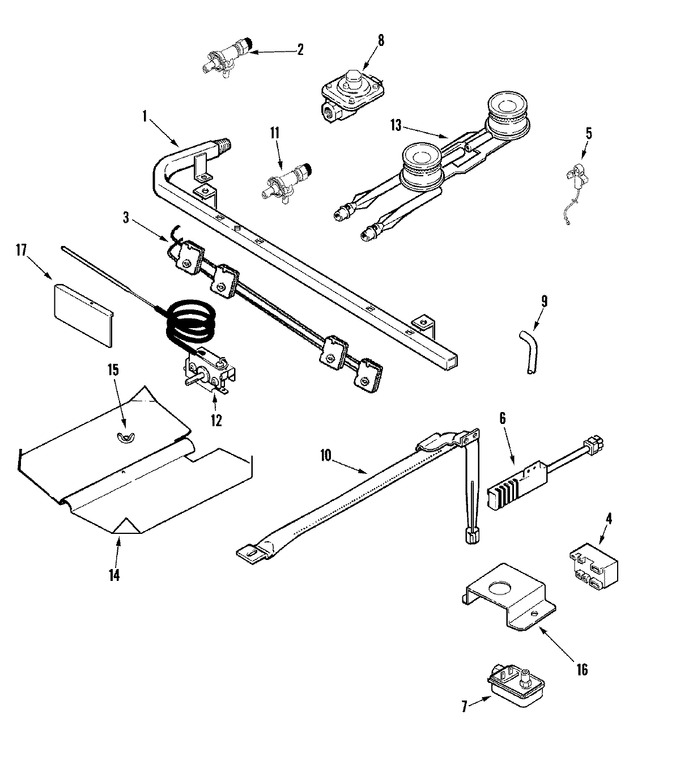

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	74003913		Pipe, Manifold	10	Appelez-nous	-
2	74010643		Valve, Top Burner (lp)	10	Appelez-nous	-
2	74002433		Screw, Valve	10	Appelez-nous	-
3	74009461		Harness,spk W/switch(4 Vlv)	16	Appelez-nous	-
4	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
4	74004282		Module, Spark (2+0)	10			$ 195.66
5	74002386		Top Igniter W/wires (lt)	10	Appelez-nous	-
5	74004483		Top Igniter W/wires (rt)	10	Appelez-nous	-
5	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
6	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
6	74007498		Igniter, Oven	10		Immediately	$ 78.40
7	74010466		Valve, Safety (lp)	10	Appelez-nous	-
8	74007524		Regulator, Pressure (l.p.)	10	Appelez-nous	-
9	74006417		Tubing, Oven Burner	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74002434		Burner, Oven	10			$ 94.06
11	12002277		Valve (mueller/shut Off)   (Replaces: 74009460)	10			$ 272.78
12	WP74002390		Thermostat   (Replaces: 74002390)	10		Immediately	$ 204.81
12	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
13	74010149		Burner, Top (frt)	10			$ 52.76
13	74010148		Burner, Top (rear)	10			$ 80.15
13	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
14	74002393		Baffle, Oven Burner	10	Appelez-nous	-
15	7103P030-60		Nut, Wing	10			$ 6.37
16	74005051		Bracket, Oven Valve	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74002391		Shield, Thermostat	10	Appelez-nous	-
