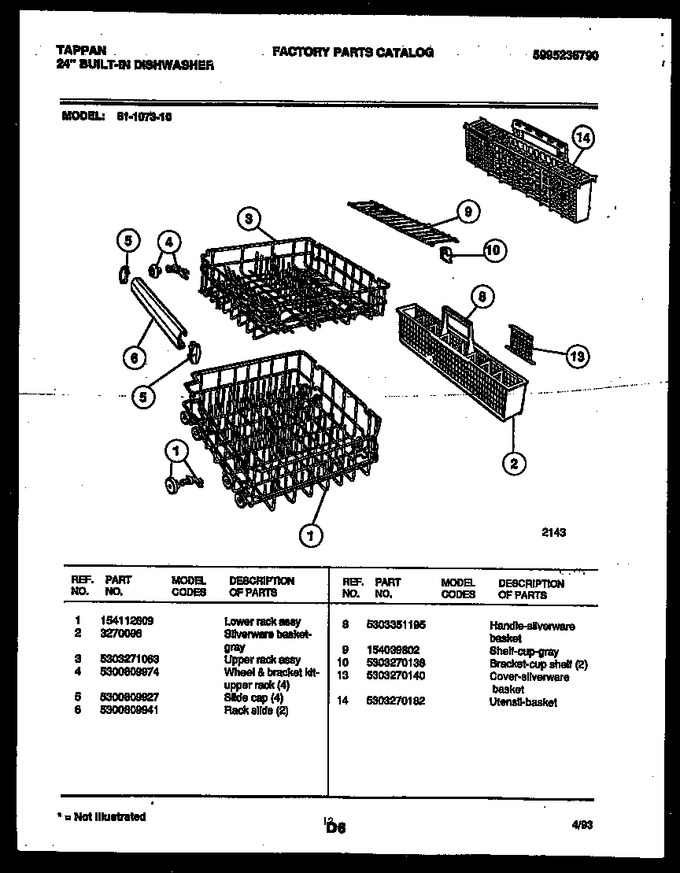

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154112609 | Lower Rack Assy |
|
- | |||||
| 2 | 3270096 | Silverware Basket-gray |
|
- | |||||
| 3 | 5303271063 | Upper Rack Assy |
|
- | |||||
| 4 | 5304535381 | Wheel & Bracket Kit - Upper Rack (4) (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Slide Cap (4) |
|
Immediately | $ 3.69 | ||||
| 6 | 5300809941 | Rack Slide (2) |
|
- | |||||
| 8 | 5303351195 | Handle-silverware Basket |
|
- | |||||
| 9 | 154039802 | Shelf-cup-gray |
|
- | |||||
| 10 | 5303270138 | Bracket-cup Shelf (2) |
|
- | |||||
| 13 | 5303270140 | Cover-silverware Basket |
|
- | |||||
| 14 | 5303270182 | Utensil Basket |
|
- |
