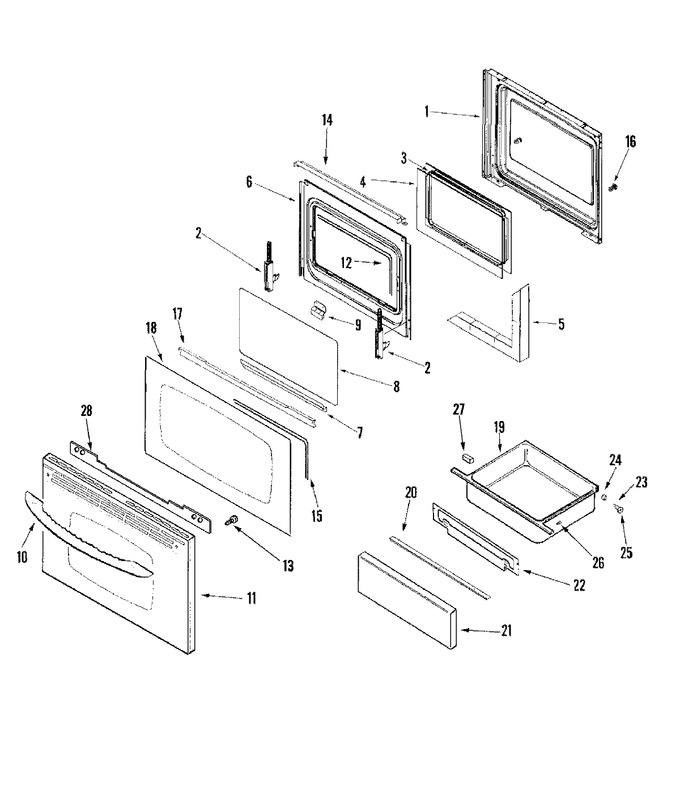

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008926		Lining, Door	10	Appelez-nous	-
2	74010545		Hinge, Door	10			$ 107.15
3	74003644		Frame, Glass	10	Appelez-nous	-
4	74003645		Glass, Inner	10		Immediately	$ 162.53
5	74003647		Insulation, Oven Door	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74008744		Baffle, Door	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74008745		Retainer, Door Glass (lwr)	10	Appelez-nous	-
8	74003649		Glass, Door	10	Appelez-nous	-
9	74008746		Retainer, Door Glass (upr)	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74011771		Handle, Door (stl)	14	Appelez-nous	-
10	74010973		Handle, Door (stl)	12	Appelez-nous	-
10	74008944		Handle, Door (stl)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74008951		Panel, Door (stl)	10	Appelez-nous	-
11	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 12.62
12	74008917		Gasket, Window Baffle	10			$ 25.50
13	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
13	74011772		Screw, Handle Mounting	14			$ 5.18
14	74009027		Baffle, Door (stl)	10	Appelez-nous	-
15	WP74009029		Gasket, Door Window   (Replaces: 74009029)	10		Immediately	$ 145.22
16	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
17	74009028		Bracket, Door Glass (stl)	10	Appelez-nous	-
18	74008855		Glass, Door (stl)	10	Appelez-nous	-
19	WP3405F037-80		Drawer, Service   (Replaces: 74008877)	10			$ 304.98
20	74008339		Handle, Drawer	21	Appelez-nous	-
20	74008909		Handle, Drawer	10			$ 32.96
21	74009024		Panel, Drawer (stl)	10	Appelez-nous	-
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
22	74009519		Shield, Drawer Heat	10	Appelez-nous	-
23	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
24	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
25	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
26	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
27	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
28	74010563		Insulation, Door (foil Back)	10	Appelez-nous	-
