SELECT A DIAGRAM

01 - Door


02 - Oven


03 - Top & Gas Controls


04 - Top & Gas Controls (series 11)

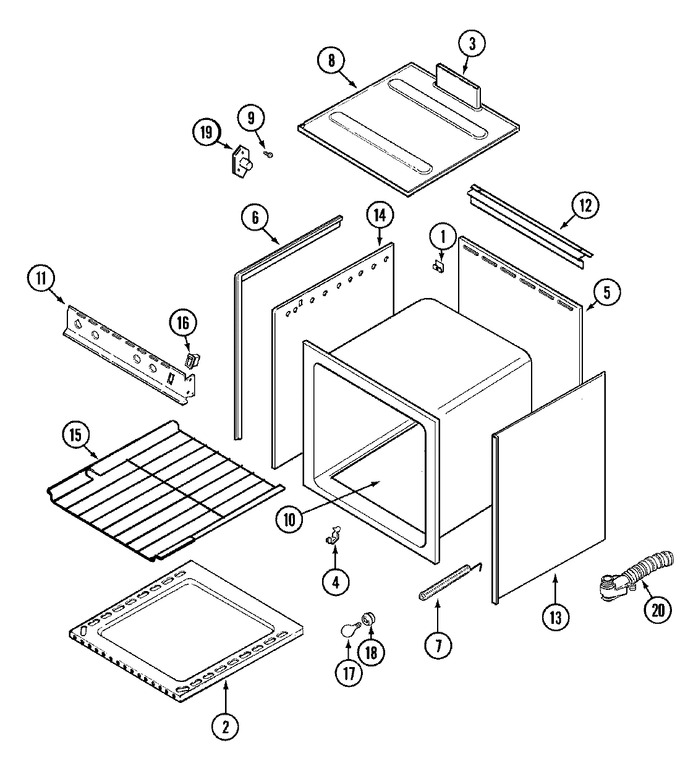

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7112P071-60		Clip, Main Top Rear	10	Appelez-nous	-
2	2205F016-19		Bottom, Oven	10	Appelez-nous	-
2	WP7101P126-60		Screw   (Replaces: 7101P064-60)	10		Immediately	$ 6.85
2	7112P065-60		Clip, Oven Bottom	10	Appelez-nous	-
3	4006W075-80		Flue Box Assy	10	Appelez-nous	-
4	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	10		Immediately	$ 11.07
5	74002417		Back, Main	10	Appelez-nous	-
5	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
5	74001747		Screw	10	Appelez-nous	-
6	3608W028-70		Trim	10	Appelez-nous	-
6	3608W027-70		Trim	10	Appelez-nous	-
7	7803P053-60		Spring, Oven Door----na	10	Appelez-nous	-
8	74003934		Bottom, Burner Box	10	Appelez-nous	-
9	7101P301-60		Screw No.6 X 1/2	10	Appelez-nous	-
10	74003342		Bottom, Main	10	Appelez-nous	-
11	74004070		Panel, Manifold	10	Appelez-nous	-
12	74002829		Shield, Deflector Flue (blk)	10	Appelez-nous	-
13	4016F038-51		Side, Body (rt)	10	Appelez-nous	-
14	4016F037-51		Side, Body (lt)	10	Appelez-nous	-
15	74003106		Rack, Oven	10			$ 78.34
16	7403P067-60		Switch, Rocker (blk)	10			$ 91.35
17	7407P043-60		Light Bulb (12v)	10	Appelez-nous	-
18	4005F259-51		Cover, Switch	10	Appelez-nous	-
18	7408P037-60		Receptacle, Bulb	10	Appelez-nous	-
19	7103P109-60		T-nut (rv Hinge)	10	Appelez-nous	-
20	5700A206-60		Conduit, Assy.	10	Appelez-nous	-
20	7111P013-60		Clamp, Wire	10	Appelez-nous	-
20	7417P004-60		Connector, Right Ang	10	Appelez-nous	-
20	8018P001-60		Sleeve, Tube	10	Appelez-nous	-
20	3801F072-45		Bracket, Conduit	10	Appelez-nous	-
20	3414F038-44		Conduit Tubing, Flexible	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
