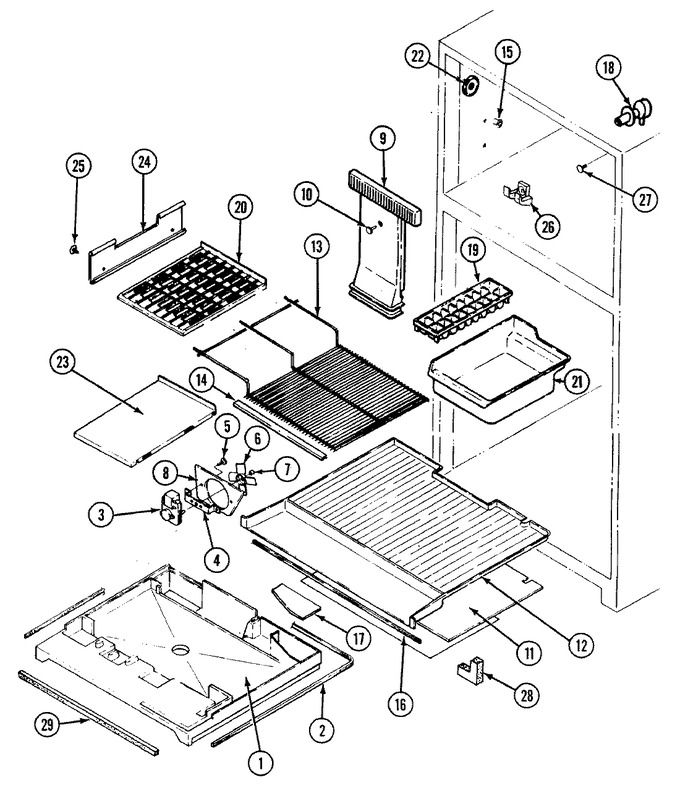

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69401-1 | Tray, Styrofoam Mullion | 10 |
|
- | ||||
| 1 | 68946-9 | Seal, Tray Perimeter (4 5/8``) | 10 |
|
- | ||||
| 2 | 69414-1 | Seal, Mullion Tray | 10 |
|
- | ||||
| 3 | 69106-3 | Motor, Evaporator Fan | 10 |
|
- | ||||
| 3 | 406062-1 | Screw | 10 |
|
- | ||||
| 4 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 69107-1 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 7 | 420092-900 | Washer, Spring | 10 |
|
- | ||||
| 8 | 60608-2 | Orifice, Fan Blade | 10 |
|
- | ||||
| 9 | 66325-34 | Seal, Air Tunnel----na | 10 |
|
- | ||||
| 9 | 67115-1 | Tunnel, Air (frz) | 10 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 400015-31) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 66403-1 | Cover, Evaporator | 10 |
|
- | ||||
| 12 | 69395-1 | Bottom, Frz. | 10 |
|
- | ||||
| 13 | 67348-3 | Shelf, Frz. (wire) | 10 |
|
- | ||||
| 14 | 67176-58 | Trim, Shelf | 10 |
|
- | ||||
| 15 | 60313-1 | Cup, Shelf | 10 |
|
- | ||||
| 16 | 69413-1 | Magnet | 10 |
|
- | ||||
| 17 | 66480-4 | Cover, Plenum | 10 |
|
- | ||||
| 18 | 68307-1 | Grommet, Water Entry | 10 |
|
- | ||||
| 19 | WP841180A | Tray, Ice (Replaces: 59281-2) | 10 |
|
Immediately | $ 41.00 | |||
| 20 | 67114-4 | Shelf, Ice Tray | 10 |
|
- | ||||
| 21 | WP67001255 | Pan, Ice (Replaces: 69919-1) | 10 |
|
$ 182.77 | ||||
| 22 | 68187-1 | Cap, Connector | 10 |
|
- | ||||
| 23 | 67349-1 | Shelf, Fill-in | 10 |
|
- | ||||
| 24 | 67147-1 | Side, Ice Tray Shelf | 10 |
|
- | ||||
| 25 | 67150-1 | Fastener, Divider | 10 |
|
- | ||||
| 26 | 66101-1 | Stud, Shelf | 10 |
|
- | ||||
| 26 | 400019-1 | Screw | 10 |
|
- | ||||
| 27 | 70146-2 | Plug Button | 10 |
|
- | ||||
| 28 | 69563-1 | Seal, Frost Chest Bottom | 10 |
|
- | ||||
| 29 | 69562-1 | Seal, Mullion Tray (front) | 10 |
|
- |
