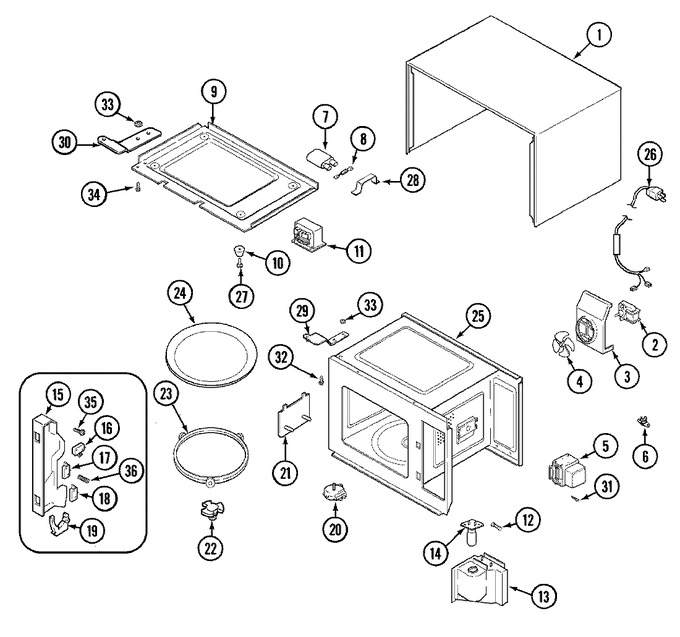

01 - Cabinet-base-cavity
02 - Control Panel
03 - Door
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 56001059 | Wrapper, Cabinet (wht) | 10 |
|
- | ||||
| 2 | 56001024 | Motor, Fan | 10 |
|
- | ||||
| 2 | 715485 | Screw | 10 |
|
- | ||||
| 3 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 56001025 | Cover, Motor | 10 |
|
- | ||||
| 4 | 56001026 | Fan, Blade | 10 |
|
- | ||||
| 5 | 56001027 | Magnetron | 10 |
|
- | ||||
| 6 | 711005 | Screw | 10 |
|
- | ||||
| 6 | 56001028 | Thermostat | 10 |
|
- | ||||
| 7 | 59001651 | Capacitor (hv) (Replaces: 56001029) | 10 |
|
$ 43.15 | ||||
| 8 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | WPR9800486 | Diode (hv) (Replaces: 56001030) | 10 |
|
$ 26.79 | ||||
| 9 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 56001031 | Base | 10 |
|
- | ||||
| 10 | 56001032 | Foot, Base | 10 |
|
- | ||||
| 11 | 56001060 | Transformer (hv) | 10 |
|
- | ||||
| 12 | Y01050005 | Fuse 15a 125v | 10 |
|
- | ||||
| 13 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 56001052 | Guide, Air | 10 |
|
- | ||||
| 14 | 56001034 | Bulb/ Socket Assy | 10 |
|
$ 11.70 | ||||
| 14 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 56001035 | Interlock | 10 |
|
- | ||||
| 16 | WP56001036 | Switch, Primary (Replaces: 56001036) | 10 |
|
$ 74.84 | ||||
| 17 | 56001037 | Switch, Secondary | 10 |
|
$ 16.47 | ||||
| 18 | WP56001036 | Switch, Primary (Replaces: 56001036) | 10 |
|
$ 74.84 | ||||
| 19 | 56001038 | Push, Lever | 10 |
|
- | ||||
| 20 | 56001039 | Motor, Turntable | 10 |
|
- | ||||
| 21 | 56001040 | Cover, Guide | 10 |
|
- | ||||
| 22 | 56001041 | Coupler, Motor | 10 |
|
- | ||||
| 23 | 56001042 | Guide, Roller Assy. | 10 |
|
- | ||||
| 24 | WP56001043 | Tray, Glass (Replaces: 56001043) | 10 |
|
$ 88.63 | ||||
| 25 | 56001044 | Cavity | 10 |
|
- | ||||
| 26 | 56001045 | Cord, Power | 10 |
|
- | ||||
| 26 | 402049-1 | Screw | 10 |
|
- | ||||
| 27 | 56001046 | Fixture, Foot | 10 |
|
- | ||||
| 28 | 56001047 | Holder, Capacitor | 10 |
|
- | ||||
| 28 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 29 | 56001048 | Hinge (uppr) | 10 |
|
- | ||||
| 30 | 56001049 | Hinge (lwr) | 10 |
|
- | ||||
| 31 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 32 | 56001050 | Bolt, Hinge | 10 |
|
- | ||||
| 33 | 56001051 | Nut, Hinge | 10 |
|
- | ||||
| 34 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 35 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 36 | 56001054 | Spring, Lock | 10 |
|
- | ||||
| 37 | 56001274 | Label, Cook Code | 10 |
|
- |
