01 - Body/cavity
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:

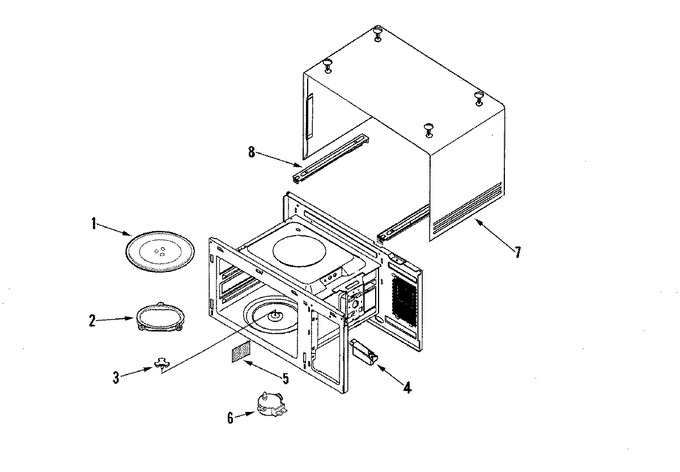

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE74-20102D | Tray-cooking | 10 |
|
$ 116.52 | ||||
| 2 | DE97-00193B | Assy-guide Roller | 10 |
|
$ 31.95 | ||||
| 3 | DE67-00140A | Coupler | 10 |
|
$ 17.58 | ||||
| 4 | DE66-90113A | Lever-door | 10 |
|
$ 17.58 | ||||
| 5 | DE71-00151A | Cover, Mgt | 10 |
|
- | ||||
| 6 | 555555 | Motor-drive (Replaces: DE31-10154A) | 10 |
|
$ 151.94 | ||||
| 7 | DE64-01177B | Panel, Outer (blk) | 10 |
|
- | ||||
| 8 | DE61-00142A | Bracket | 10 |
|
- |
