View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/cavity

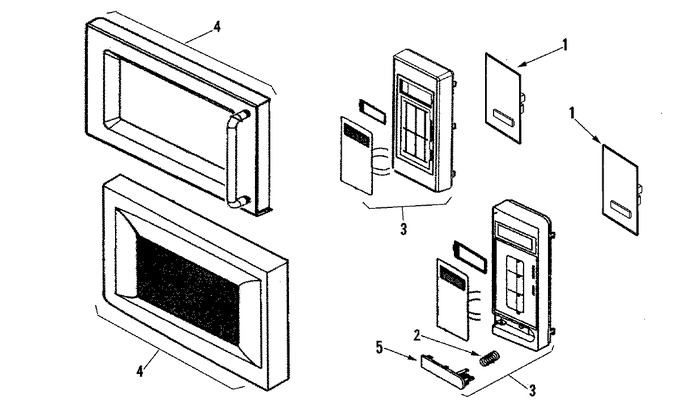

02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10127137 | Assy Pcb Parts | 10 |
|
- | ||||
| 2 | DE61-70076A | Spring, Button | 10 |
|
$ 20.70 | ||||
| 3 | DE94-00109J | Control Panel Asy (wht) | 10 |
|
- | ||||
| 4 | DE94-00104S | Door Assembly (wht) | 10 |
|
- | ||||
| 5 | DE66-20281P | Button, Push (wht) | 10 |
|
- |
