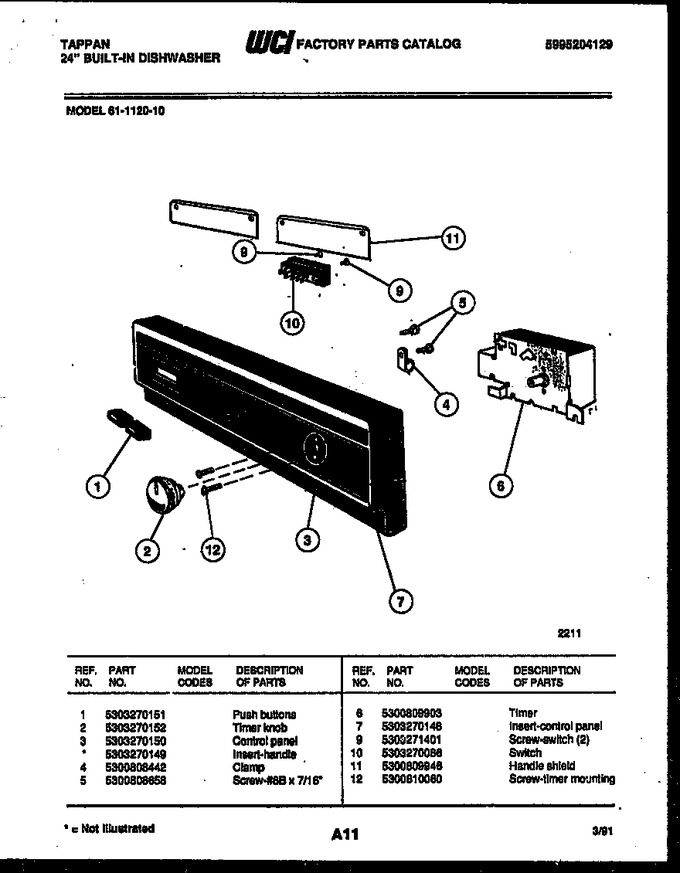

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270151 | Push Buttons |
|
- | |||||
| 2 | 5303270152 | Timer Knob |
|
- | |||||
| 3 | 5303270150 | Control Panel |
|
- | |||||
| 4 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 5 | 154419403 | Screw-8b X 7/16`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 6 | 5300809903 | Timer |
|
- | |||||
| 7 | 5303270148 | Insert-control Panel |
|
- | |||||
| 9 | 5303271401 | Screw-switch (2) |
|
- | |||||
| 10 | 5303270086 | Switch |
|
- | |||||
| 11 | 5300809946 | Handle Shield |
|
- | |||||
| 12 | 5300810060 | Screw-timer Mounting |
|
- | |||||
| 3A | 5303270149 | Insert-handle (non-illustrated) |
|
- |
