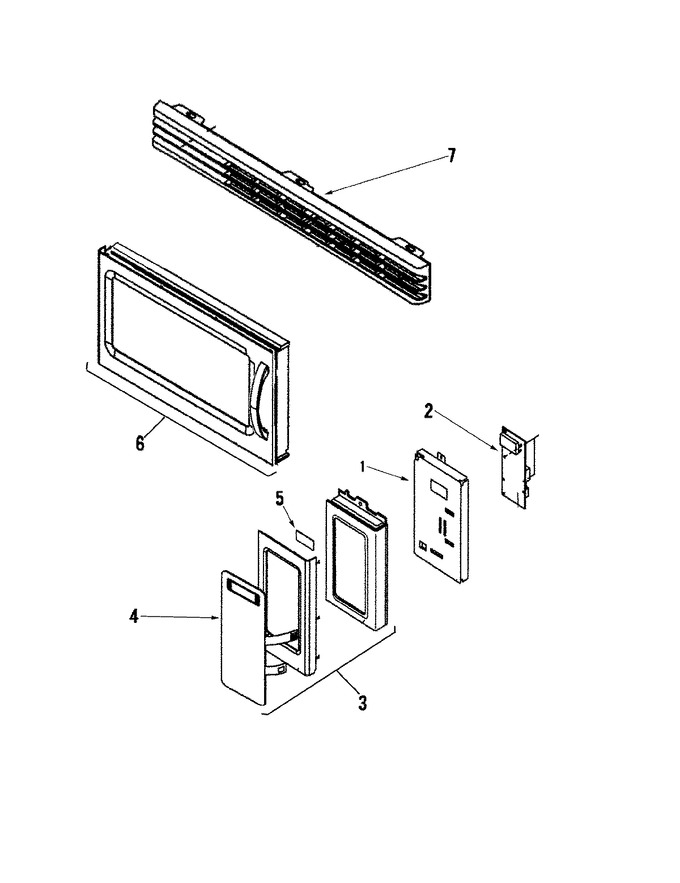

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE97-00600B | Asy Bracket-c/panel | 10 |
|
- | ||||
| 2 | W10127090 | Asy Pcb | 10 |
|
- | ||||
| 3 | DE94-01354F | Asy-control Panel (wht) | 10 |
|
- | ||||
| 4 | DE34-00231B | Switch Membrane (wht) | 10 |
|
- | ||||
| 5 | DE64-00766B | Window-display;4150,san,t2.0,w | 10 |
|
$ 13.33 | ||||
| 6 | DE94-01352F | Asy Door (wht) | 10 |
|
- | ||||
| 7 | DE64-01453B | Grille (wht) | 10 |
|
$ 112.44 |
