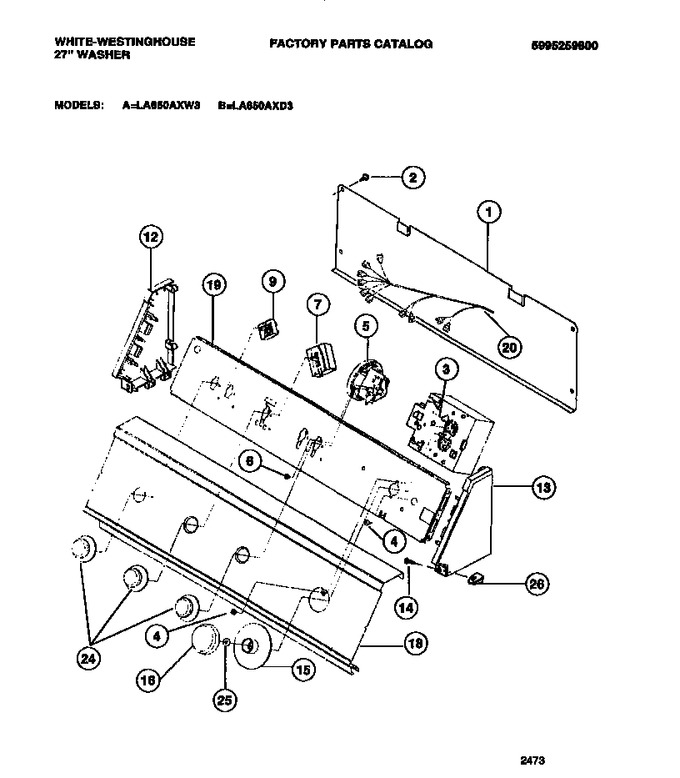

01 - Washer, 27``
02 - Cabinet, Top Panel, Base
03 - Tubs, Hoses, Motor
04 - Transmission
05 - Console & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 131052100 | Screw |
|
- | |||||
| 3 | 5303271765 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047700 | Switch-pressure |
|
- | |||||
| 6 | 5303285470 | Screw |
|
- | |||||
| 7 | 131120400 | Switch - Speed |
|
- | |||||
| 9 | 131081200 | Switch-temperature |
|
- | |||||
| 12 | 5303291344 | End Cap-lh |
|
$ 59.59 | |||||
| 13 | 5303291352 | End Cap-rh |
|
$ 56.49 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131118500 | Dial |
|
- | |||||
| 16 | 131118400 | Knob-timer |
|
$ 54.07 | |||||
| 18 | 131224100 | Panel-control |
|
- | |||||
| 19 | 131297306 | Bracket-controls |
|
- | |||||
| 20 | 131166200 | Harness |
|
- | |||||
| 24 | 131118600 | Knob-rotary |
|
- | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 5300503065 | Clip |
|
$ 6.09 | |||||
| *43081 | 08001689 | Screw |
|
- | |||||
| *43082 | 5303281035 | Screw-grd-cabinet |
|
- |
