SELECT A DIAGRAM

01 - Base/latch Board Assembly


02 - Blower Motor


03 - Cavity


04 - Control Panel/door Assembly


05 - Installation


06 - Outer Case/vent Grille


07 - Supplemental Information

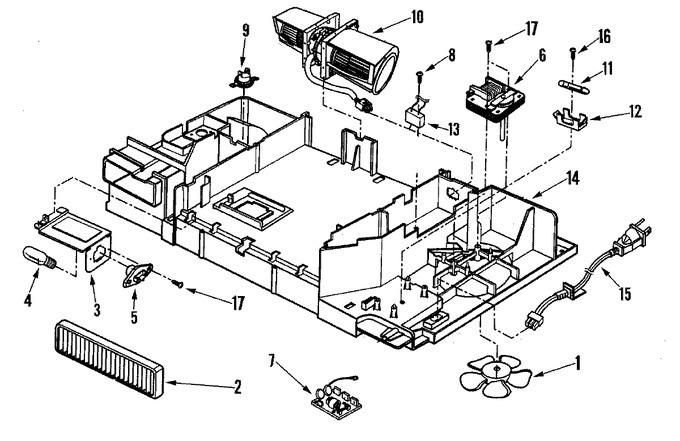

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001252		Blade, Fan(round Shaft)	10	Appelez-nous	-
2	WP53001442		Filter (charcoal)   (Replaces: 53001442)	10			$ 33.60
3	R9800462		Cover	10	Appelez-nous	-
4	WPA3073101		Lamp   (Replaces: 53001773)	10		Immediately	$ 10.90
5	53001775		Socket, Lamp	10	Appelez-nous	-
6	53001650		Motor, Fan (d-shaft)	10	Appelez-nous	-
7	R9800472		Assy, Fuse Block/noise Filter	11	Appelez-nous	-
8	R0654183		Screw, Truss Hd	10	Appelez-nous	-
9	R9900321		Thermostat, Bimetal	10	Appelez-nous	-
10	53001798		Motor, Ventilation	10	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	11	Appelez-nous	-
11	WP8183507		Fuse   (Replaces: R0131110)	10			$ 18.33
12	W10124350		Not Required Part Or See Note	11	Appelez-nous	-
12	R0131021		Holder, Fuse	10	Appelez-nous	-
13	53001771		Capacitor	10	Appelez-nous	-
14	53001768		Duct	10	Appelez-nous	-
15	R9800466		Cord, Power	10	Appelez-nous	-
16	R0654030		Screw, Pan Hd S/tap	10	Appelez-nous	-
17	R9800411		Screw, Tap Th	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
