01 - Base/cavity/internal Controls
02 - Body/blower Motor
03 - Control Panel/door/vent Grille
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:

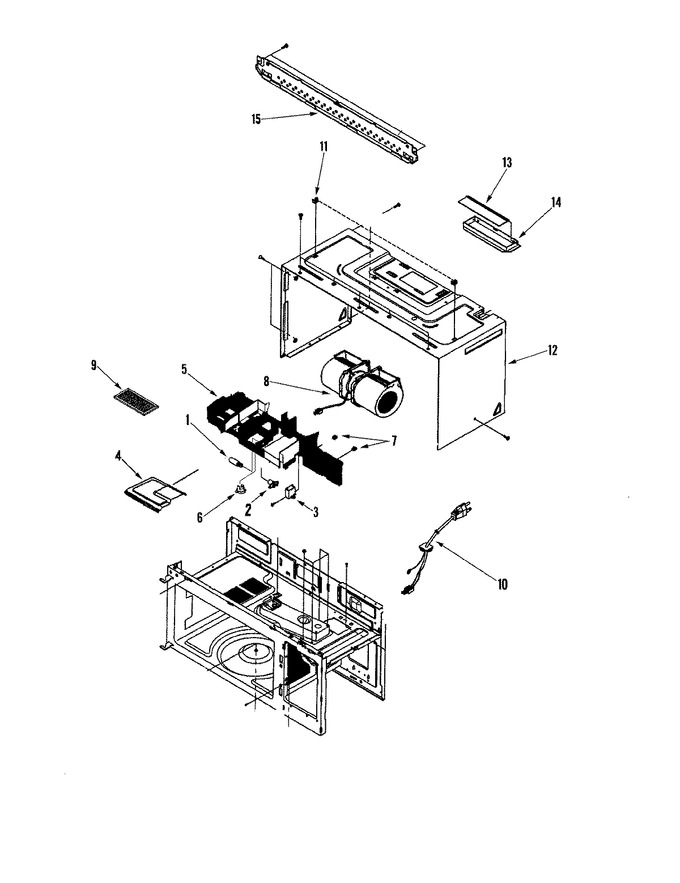

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4713-001013 | Lamp-incandescent | 10 |
|
Immediately | $ 18.00 | |||
| 2 | DE47-00032B | Socket-lamp Halogen | 10 |
|
$ 34.51 | ||||
| 3 | DE59-50002A | Capacitor-motor | 10 |
|
Immediately | $ 27.34 | |||
| 4 | DE61-00806A | Bracket-duct (u) | 10 |
|
- | ||||
| 5 | DE97-00597A | Asy Duct-upper | 10 |
|
- | ||||
| 6 | 555555 | Sw-thermo (Replaces: DE47-20059A) | 10 |
|
$ 151.94 | ||||
| 7 | DE60-30063A | Nut-mounting | 10 |
|
$ 11.37 | ||||
| 8 | DE31-00028A | Motor Ventilation | 10 |
|
$ 145.08 | ||||
| 9 | 555555 | Filter-charcoal (Replaces: DE63-00367D) | 10 |
|
$ 151.94 | ||||
| 10 | DE96-00218A | Assy-power Cord | 10 |
|
$ 78.75 | ||||
| 11 | DE92-90508A | Assy-holder Nut | 10 |
|
Immediately | $ 17.58 | |||
| 12 | DE64-00754A | Panel-outer (blk) | 10 |
|
$ 15.82 | ||||
| 13 | DE71-60051A | Cover-damper | 10 |
|
$ 23.29 | ||||
| 14 | DE72-40022A | Damper-main | 10 |
|
Immediately | $ 12.07 | |||
| 15 | 555555 | Plate-mounting (Replaces: DE70-00378A) | 10 |
|
$ 151.94 |
