01 - Base & Cavity


02 - Cabinet & Ventilation


03 - Control Panel


04 - Door


05 - Internal Controls


06 - Supplemental Information


07 - Wiring Information

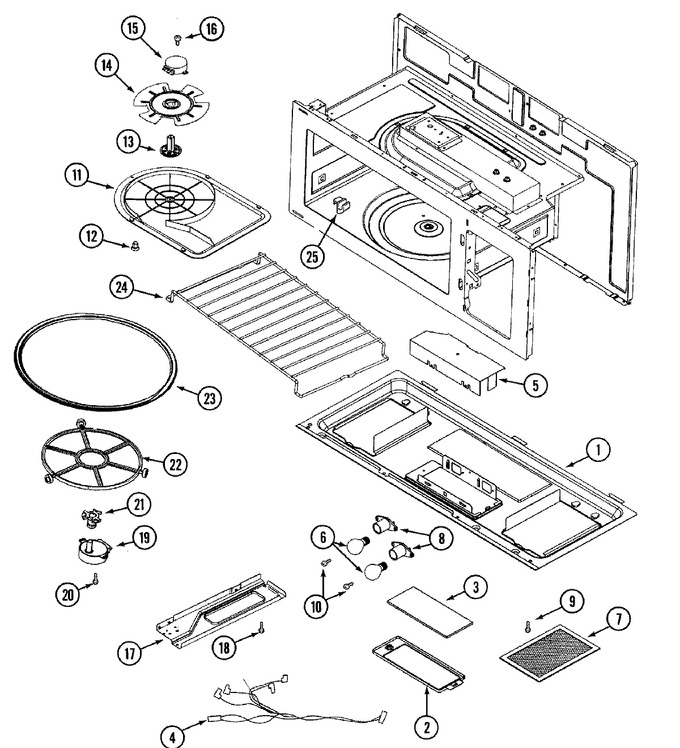

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56001180		Plate, Base (blk)	10	Appelez-nous	-
2	56001149		Screw	10	Appelez-nous	-
2	56001179		Bracket, Bulb Cover	10	Appelez-nous	-
3	56001072		Cover, Bulb	10	Appelez-nous	-
4	56001171		Harness, Bulb	10	Appelez-nous	-
5	56001149		Screw	10	Appelez-nous	-
5	56001073		Insulator, Bulb	10	Appelez-nous	-
6	8206232A		Bulb   (Replaces: 56001071)	10		Immediately	$ 6.61
7	4358853		Filter, Air   (Replaces: 56001069)	10		Immediately	$ 16.99
8	56001070		Receptacle, Bulb	10	Appelez-nous	-
9	56001149		Screw	10	Appelez-nous	-
10	56001149		Screw	10	Appelez-nous	-
11	56001074		Cover, Stirrer	10	Appelez-nous	-
12	56001177		Button, Locking	10	Appelez-nous	-
13	56001075		Coupler, Stirrer	10	Appelez-nous	-
14	56001076		Blade, Stirrer	10	Appelez-nous	-
15	56001337		Motor, Stirrer   (Replaces: 56001077)	10			$ 149.37
16	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
17	56001078		Base, Left	10	Appelez-nous	-
18	56001149		Screw	10	Appelez-nous	-
19	56001079		Motor, Turntable	10	Appelez-nous	-
20	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
21	56001041		Coupler, Motor	10	Appelez-nous	-
22	56001080		Roller/guide	10	Appelez-nous	-
23	56001082		Tray, Glass	10	Appelez-nous	-
24	56001083		Rack	10	Appelez-nous	-
25	56001096		Supports, Rack	10	Appelez-nous	-
26	56001276		Label, Cook Code	10	Appelez-nous	-
27	56001184		Plate, Wall Mtg	10	Appelez-nous	-
27	56001183		Kit, Mounting Hardware	10	Appelez-nous	-
