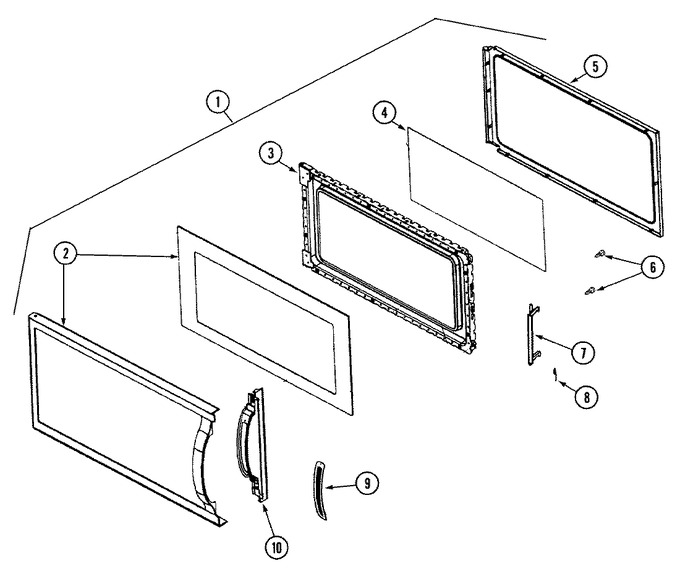

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 56001291 | Door Assembly (wht) | 10 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note Parts Not Sold Separately (must Order Door Assembly- Item No.1) | 10 |
|
- | ||||
| 3 | 56001299 | Lining, Door (blk) | 10 |
|
- | ||||
| 4 | 56001300 | Screen, Door (inner) | 10 |
|
- | ||||
| 5 | 56001289 | Gasket, Door | 10 |
|
- | ||||
| 6 | 56001210 | Screw | 10 |
|
- | ||||
| 7 | 56001065 | Hook, Latch | 10 |
|
$ 5.04 | ||||
| 8 | 56001066 | Spring, Hook | 10 |
|
- | ||||
| 9 | 56001301 | Foam, Door Handle | 10 |
|
- | ||||
| 10 | 56001295 | Handle, Door (wht) | 10 |
|
- |
