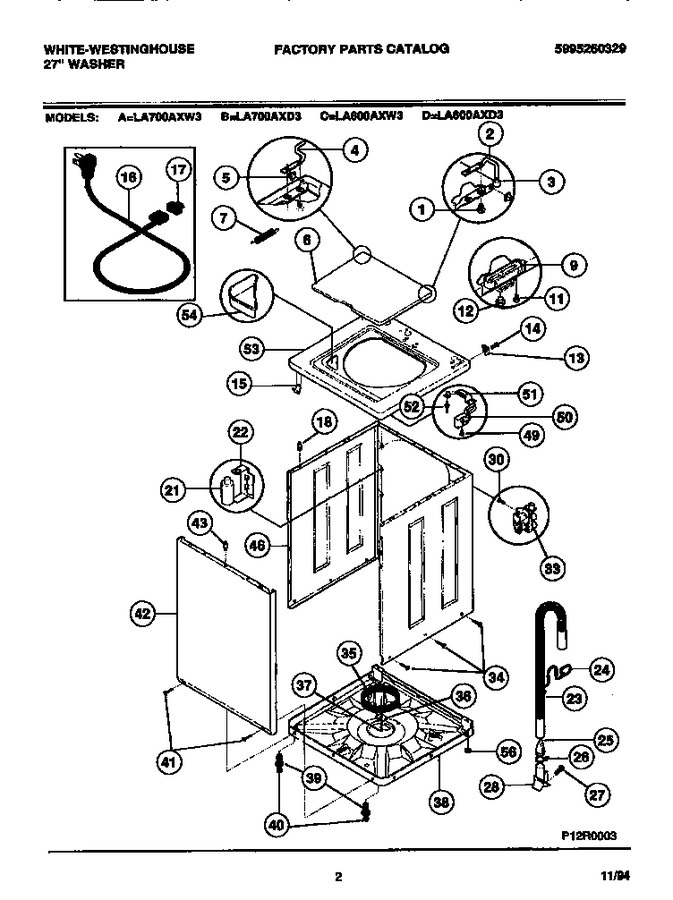

02 - Cabinet, Top Panel, Base
03 - Tubes, Hoses, Motor
04 - Transmission
05 - Console & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211089 | Screw (4) |
|
- | |||||
| 2 | 131374200 | Hinge Bar-rh |
|
- | |||||
| 3 | 5303208748 | Bumper |
|
- | |||||
| 4 | 131385900 | Hinge Bar-lh |
|
- | |||||
| 5 | 5303208743 | Grommet |
|
$ 5.63 | |||||
| 6 | 131377900 | Lid-white |
|
- | |||||
| 7 | 134890500 | Spring (Replaces: 5303212876) |
|
$ 19.85 | |||||
| 9 | 131390000 | Lid Strike (Replaces: 3204367) |
|
$ 55.19 | |||||
| 11 | 3204368 | Screw |
|
$ 13.01 | |||||
| 12 | 134075500 | Bumper (Replaces: 3204369) |
|
$ 17.35 | |||||
| 13 | 5303208751 | Hinge |
|
$ 33.50 | |||||
| 14 | 5308057419 | Screw |
|
- | |||||
| 15 | 3205821 | Clip |
|
Immediately | $ 35.44 | ||||
| 16 | 5304505407 | Service Cord (Replaces: 5303208765) |
|
$ 88.20 | |||||
| 17 | 5303209428 | Bushing |
|
$ 17.01 | |||||
| 18 | 3204373 | Pin (4) |
|
$ 4.99 | |||||
| 21 | 5308014903 | Capacitor |
|
- | |||||
| 22 | 5303161252 | Bracket-capacitor |
|
- | |||||
| 23 | 3205414 | Hose-drain |
|
- | |||||
| 24 | 5303204987 | Retainer |
|
- | |||||
| 25 | 3204375 | Valve Check |
|
$ 48.06 | |||||
| 26 | 5364154013 | Clamp |
|
- | |||||
| 27 | 5308806553 | Screw |
|
- | |||||
| 28 | 3204376 | Coupler |
|
- | |||||
| 30 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 33 | 134190200 | Valve-water (Replaces: 5303207418) |
|
Immediately | $ 153.09 | ||||
| 34 | 5308001613 | Screw |
|
- | |||||
| 35 | 5308002385 | Snubber Ring |
|
$ 54.86 | |||||
| 36 | 3204380 | Shipping Block |
|
$ 12.29 | |||||
| 37 | 3204381 | Shipping Screw |
|
- | |||||
| 38 | 5303300247 | Base |
|
- | |||||
| 39 | 5303272067 | Leveling Leg & Pad |
|
- | |||||
| 40 | 5303004083 | Pad-leg |
|
- | |||||
| 41 | 3205406 | Screw |
|
- | |||||
| 42 | 131104303 | Panel - Front - White |
|
$ 309.70 | |||||
| 43 | 3204373 | Locating Pin |
|
$ 4.99 | |||||
| 46 | 131062110 | Body - White |
|
- | |||||
| 49 | 08001689 | Screw |
|
- | |||||
| 50 | 3205646 | Lid Lock |
|
- | |||||
| 51 | 3204391 | Bracket |
|
- | |||||
| 52 | 08002420 | Rivet |
|
- | |||||
| 53 | 131386212 | Panel Top-white |
|
- | |||||
| 54 | 5303208778 | Bleach Dispenser |
|
$ 51.71 | |||||
| 56 | 131422200 | Pad-leg (Replaces: 5303293754) |
|
Immediately | $ 56.70 |
