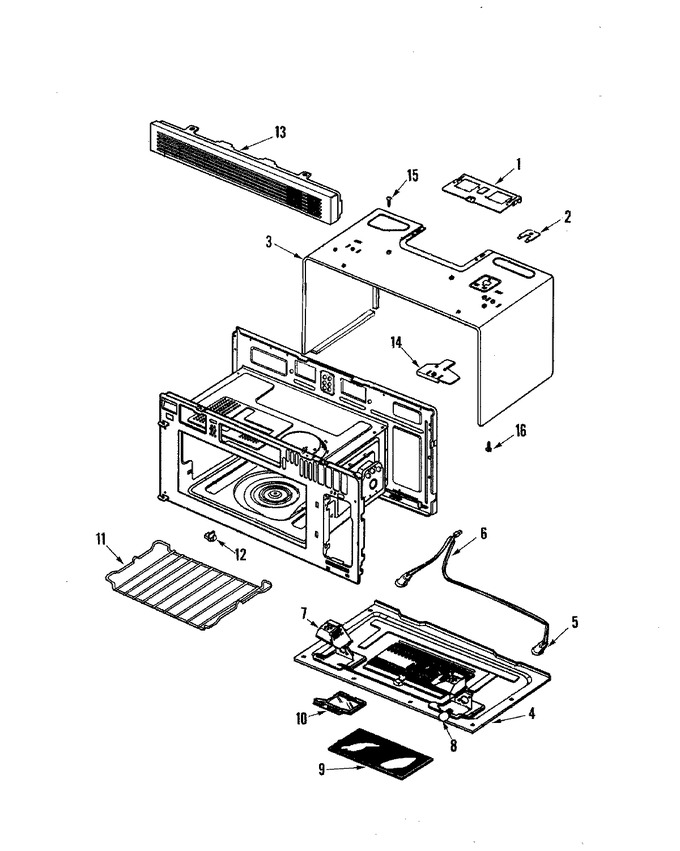

01 - Base & Cavity
02 - Control Panel
03 - Door
04 - Installation
05 - Interior Controls
06 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0130606 | Mount, Plate | 11 |
|
- | ||||
| 1 | R0131246 | Screw, Tapping Truss Head | 11 |
|
- | ||||
| 2 | R9800374 | Cover, Power Cord | 11 |
|
- | ||||
| 3 | R0130643 | Cabinet (bsq) | 11 |
|
- | ||||
| 3 | R0654183 | Screw, Truss Hd | 11 |
|
- | ||||
| 4 | R0654036 | Screw, Truss Hd S/tap | 11 |
|
- | ||||
| 4 | R0130626 | Plate, Base | 11 |
|
- | ||||
| 5 | R9800407 | Socket, Lamp | 11 |
|
- | ||||
| 6 | R0130611 | Wire, Lead Assy | 11 |
|
- | ||||
| 7 | R0130600 | Reflector (lt) | 11 |
|
- | ||||
| 7 | R0130599 | Reflector (rt) | 11 |
|
- | ||||
| 8 | WPA3073101 | Lamp (oven/baseless) (Replaces: R9900292) | 11 |
|
Immediately | $ 10.90 | |||
| 9 | WPR0130608 | Filter, Grease (Replaces: R0130608) | 11 |
|
$ 39.94 | ||||
| 10 | R0130614 | Cover, Lamp | 11 |
|
$ 5.85 | ||||
| 11 | 53001175 | Shelf | 11 |
|
- | ||||
| 12 | 53001176 | Holder, Shelf | 11 |
|
- | ||||
| 13 | 59001112 | Grill, Vent (bsq) | 11 |
|
- | ||||
| 14 | R9800364 | Bracket, Mounting | 11 |
|
- | ||||
| 15 | R9800359 | Screw, Tap Th | 11 |
|
- | ||||
| 16 | R0654036 | Screw, Truss Hd S/tap | 11 |
|
- |
