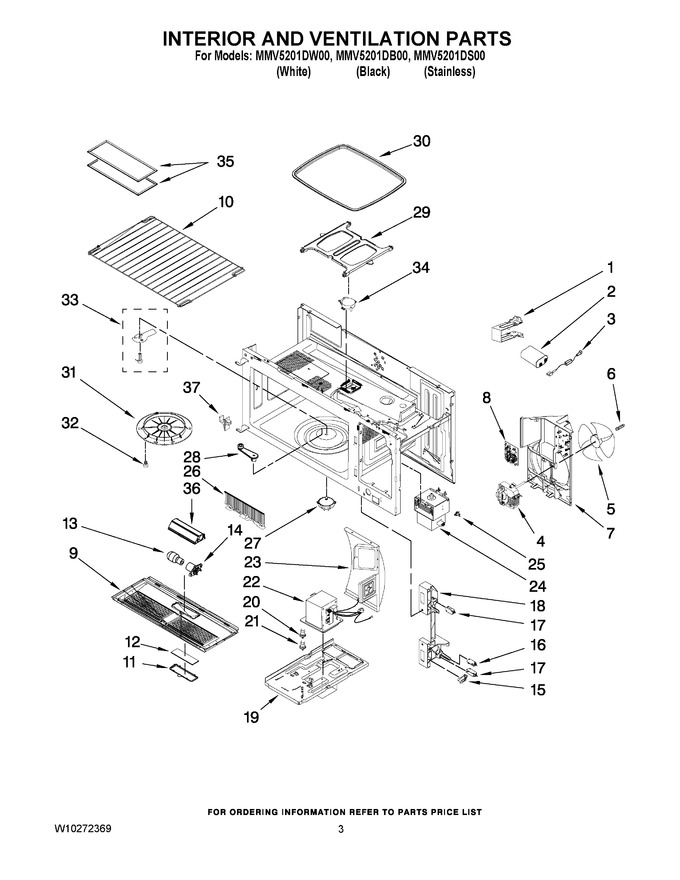

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE61-00115A		Bracket, Capacitor				$ 18.00
2	8206562		Capacitor   (Replaces: 2501-001016)			Immediately	$ 108.83
3	DE91-70063D		Diode, H.v.			Immediately	$ 15.89
4	W10250841		Motor, Fan				$ 84.50
5	DE31-90051A		Blade-fan				$ 6.95
6	W10260124		Spring, Blade		Appelez-nous	-
7	W10197780		Guide, Suction		Appelez-nous	-
8	W10182040		Filter, Noise				$ 42.08
9	W10192097		Plate, Bottom (white)		Appelez-nous	-
9	W10192477		Plate, Bottom (black)				$ 34.71
10	W10182049		Rack, Cooking		Appelez-nous	-
11	DE63-00137B		Holder, Glass (black)				$ 25.43
11	DE63-00137C		Holder, Glass (white)				$ 9.82
12	DE64-00911A		Glass, Lamp				$ 18.00
13	4713-001013		Lamp			Immediately	$ 18.00
14	DE47-00006A		Holder-lamp				$ 17.58
15	DE66-90106B		Lever, Switch				$ 17.58
16	3405-001033		Switch-micro			Immediately	$ 17.58
17	3405-001034		Switch, Micro			Immediately	$ 14.85
18	DE66-00168A		Latch Board			Immediately	$ 18.65
19	W10187747		Plate, Base		Appelez-nous	-
20	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 151.94
21	DE47-20034A		Thermostat			Immediately	$ 20.09
22	W10250839		Transformer, H.v.				$ 225.82
23	W10197689		Duct, Magnetron		Appelez-nous	-
24	WPW10126786		Magnetron   (Replaces: W10126786)				$ 312.35
25	555555		Thermostat   (Replaces: DE47-20007A)				$ 151.94
26	W10197680		Cover, Front				$ 6.72
27	555555		Motor, Turntable   (Replaces: DE31-10172A)				$ 151.94
28	W10258244		Coupler		Appelez-nous	-
29	DE61-00855A		Guide-tray		Appelez-nous	-
30	DE63-00383A		Tray-cooking				$ 131.79
31	DE71-60121A		Cover-stirrer				$ 16.82
32	DE66-20095B		Button-lock				$ 17.58
33	W10197709		Stirrer, Assembly				$ 42.28
34	DE31-10173A		Motor-drive				$ 54.87
35	DE63-00196A		Filter-air			Immediately	$ 14.77
36	DE61-00407C		Bracket, Lamp				$ 9.10
37	DE61-00375A		Holder-rack				$ 17.58
