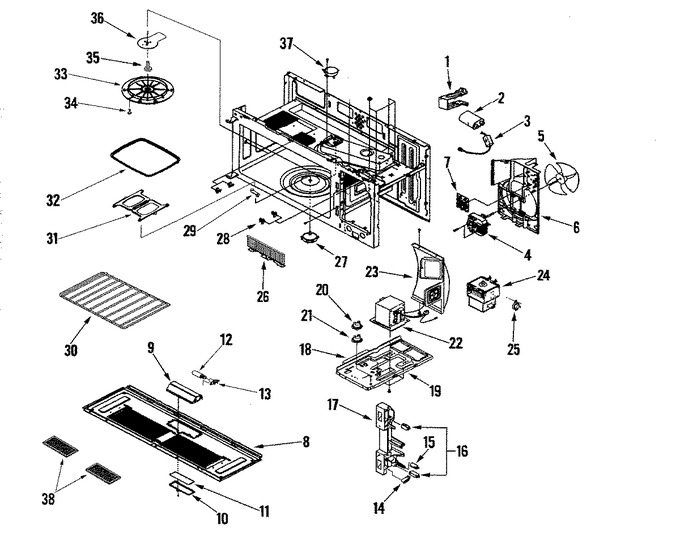

01 - Base/cavity/internal Controls
02 - Body/blower Motor
03 - Control Panel/door/vent Grille
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE61-00115A | Bracket-hvc | 10 |
|
$ 18.00 | ||||
| 2 | 8206562 | Capacitor (Replaces: 2501-001016) | 10 |
|
Immediately | $ 108.83 | |||
| 3 | DE91-70063D | Assy-hvd | 10 |
|
Immediately | $ 15.89 | |||
| 4 | 555555 | Motor Fan (Replaces: DE31-10177E) | 10 |
|
$ 151.94 | ||||
| 5 | DE31-90051A | Blade-fan | 10 |
|
$ 6.95 | ||||
| 6 | DE63-00141A | Cover-motor | 10 |
|
- | ||||
| 7 | DE96-00400B | Assy Noise Filter;sn-uf12b,250 | 10 |
|
$ 83.67 | ||||
| 8 | DE61-00406B | Base-bottom | 10 |
|
$ 93.56 | ||||
| 9 | DE61-00407C | Bracket-bottom Lamp | 10 |
|
$ 9.10 | ||||
| 10 | DE63-00137A | Cover-glass Cooktop ----sna | 10 |
|
$ 34.10 | ||||
| 11 | DE64-00911A | Glass-cooktop Lamp | 10 |
|
$ 18.00 | ||||
| 12 | 4713-001165 | Lamp-halogen | 10 |
|
Immediately | $ 33.30 | |||
| 13 | DE47-00032B | Socket-lamp Halogen | 10 |
|
$ 34.51 | ||||
| 14 | DE66-90106B | Lever-switch Lower | 10 |
|
$ 17.58 | ||||
| 15 | 3405-001033 | Switch-micro | 10 |
|
Immediately | $ 17.58 | |||
| 16 | 3405-001034 | Switch, Micro (125/250 Vac) | 10 |
|
Immediately | $ 14.85 | |||
| 17 | DE66-00168A | Latch-body;modular-2,pp,-,-,-, | 10 |
|
Immediately | $ 18.65 | |||
| 18 | DE63-00008F | Cushion-sponge | 10 |
|
- | ||||
| 19 | DE61-00415A | Base-plate | 10 |
|
- | ||||
| 20 | 555555 | Sw-thermo (Replaces: DE47-20059A) | 10 |
|
$ 151.94 | ||||
| 21 | DE47-20034A | Thermostat | 10 |
|
Immediately | $ 20.09 | |||
| 22 | DE26-00125A | Trans H.v | 10 |
|
$ 276.76 | ||||
| 23 | DE61-00411A | Bracket-duct Rear | 10 |
|
- | ||||
| 24 | WPW10126786 | Assy-magnetron (Replaces: W10126786) | 10 |
|
$ 312.35 | ||||
| 25 | 555555 | Thermostat (Replaces: DE47-20007A) | 10 |
|
$ 151.94 | ||||
| 26 | DE63-00138A | Cover-front | 10 |
|
- | ||||
| 27 | DE31-10173A | Motor-drive | 10 |
|
$ 54.87 | ||||
| 28 | DE61-00375A | Holder-rack | 10 |
|
$ 17.58 | ||||
| 29 | DE97-00602A | Asy-coupler | 10 |
|
$ 24.72 | ||||
| 30 | 555555 | Rack-wire ----sna (Replaces: DE75-00036A) | 10 |
|
$ 151.94 | ||||
| 31 | DE61-00855A | Guide-tray | 10 |
|
- | ||||
| 32 | DE63-00383A | Tray-cooking | 10 |
|
$ 131.79 | ||||
| 33 | DE71-60121A | Cover-stirrer | 10 |
|
$ 16.82 | ||||
| 34 | DE66-20095B | Button-lock | 10 |
|
$ 17.58 | ||||
| 35 | DE61-00804A | Holder-stirrer | 10 |
|
- | ||||
| 36 | DE66-00184A | Blade-stirrer | 10 |
|
- | ||||
| 37 | 555555 | Motor Drive (Replaces: DE31-00040A) | 10 |
|
$ 151.94 | ||||
| 38 | DE63-00196A | Filter-air | 10 |
|
Immediately | $ 14.77 |
