SELECT A DIAGRAM

01 - Cover


03 - Control Panel

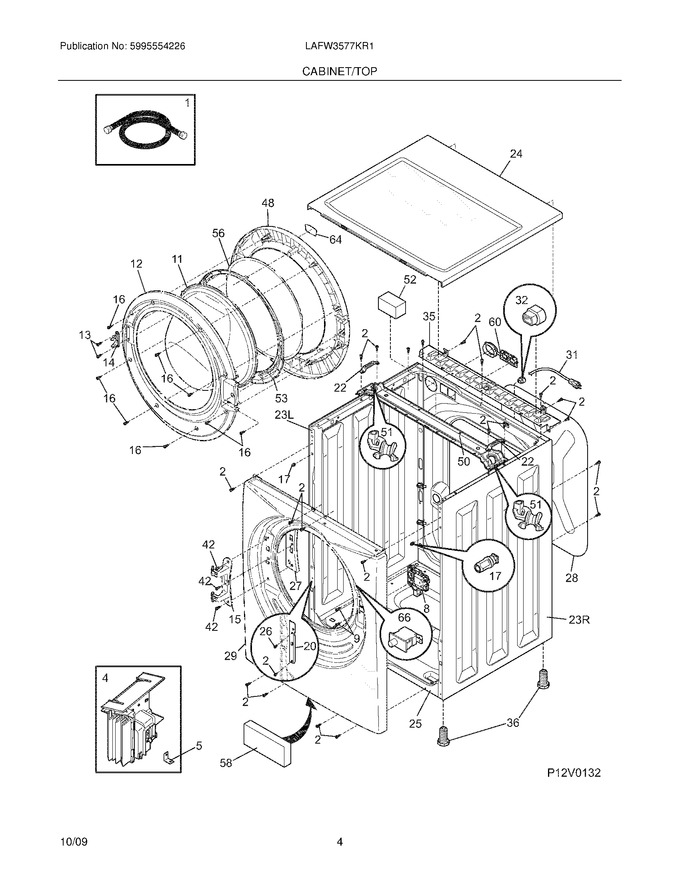

05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131454100		Hose,water Inlet ,4 Ft. ,hose & Washer		Appelez-nous	-
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	5304504863		Control Board,motor   (Replaces: 134409905)			Immediately	$ 345.34
5	134522900		Bracket,angle ,motor Control				$ 13.01
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
11	134366400		Panel,door Glass				$ 313.91
12	134550702		Frame,inner Door ,gray				$ 140.34
13	131302901		Screw,10-16 X 0.750				$ 4.96
14	131763302		Striker,door/lock ,gray   (Replaces: 134456602)			Immediately	$ 35.08
15	134550800		Hinge,door ,with Bushings				$ 141.75
16	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
17	134638700		Clip,assembly		Appelez-nous	-
20	134434901		Bracket,ls Panel ,reinforcement				$ 43.73
22	134648500		Bracket-spring,retainer				$ 19.69
24	134365040		Panel,work Top ,red				$ 225.75
25	134775500		Base,washer				$ 154.77
26	134521600		Screw,hex Washer Head ,m5 0.8 X 15				$ 2.63
27	134550900		Bracket,hinge ,reinforcement				$ 60.72
28	134364300		Panel,service Access ,rear				$ 54.39
29	137021840		Panel,front ,red				$ 264.76
32	5303209428		Bushing,power Cord				$ 17.01
35	134365100		Bracket,top Support ,rear				$ 150.99
36	134548800		Leveling Leg,screw ,plastic			Immediately	$ 30.20
42	137380600		Screw,flat Head ,m5 X .8 X 17.5   (Replaces: 134601900)				$ 9.41
48	134601525		Panel,outer Door ,chrome		Appelez-nous	-
50	134645600		Bracket,tub Suspension		Appelez-nous	-
51	134655800		Protector,tub Suspension ,spring Hook ,(2)				$ 4.45
52	131931202		Dampener,vibration ,foam				$ 17.35
53	134551300		Ring,door Transition				$ 69.40
54	134364900		Fastener,wire Harn Clip		Appelez-nous	-
56	137577700		Glass,outer Door Lens   (Replaces: 134550600)				$ 224.84
58	131800405		Insulation,noise Absorber		Appelez-nous	-
60	134372000		Grommet,dispenser ,back Panel				$ 30.47
64	137166825		Nameplate,affinity				$ 88.99
23L	134775340		Panel,left Side ,red		Appelez-nous	-
23R	134775240		Panel,right Side ,red		Appelez-nous	-
F31	5304505407		Power Cord,electric Svce   (Replaces: 134501000)				$ 88.20
F66	134813660		Switch,door ,rectangle ,gray			Immediately	$ 22.42
F8	131763256		Door Lock/switch Assy   (Replaces: 131763202)			Immediately	$ 146.76
FNI	134547600		Wiring Harness,motor Control				$ 70.09
FNI	134603100		Wiring Harness,door Switch				$ 28.63
NI	134889700		Clip, Hose,drain ,rear-panel				$ 18.38
NI	134178901		Screw,8-18ab X 0.455				$ 14.89
NI	137021600		Bracket,mounting ,left ,front Panel				$ 11.96
NI	137021610		Bracket,mounting ,right ,front Panel				$ 21.60
NI	134554500		Pad,outer Door				$ 14.60
NI	134591500		Plug Assy,shipping Holes ,back				$ 46.78
NI	134629400		Screw,mc5x8.5 Torx ,cabinet Mtg				$ 12.76
NI	134876501		Clip,hose,drain ,rear-panel   (Replaces: 134876500)				$ 19.85
NI	134434900		Bracket,rs Panel ,reinforcement		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
