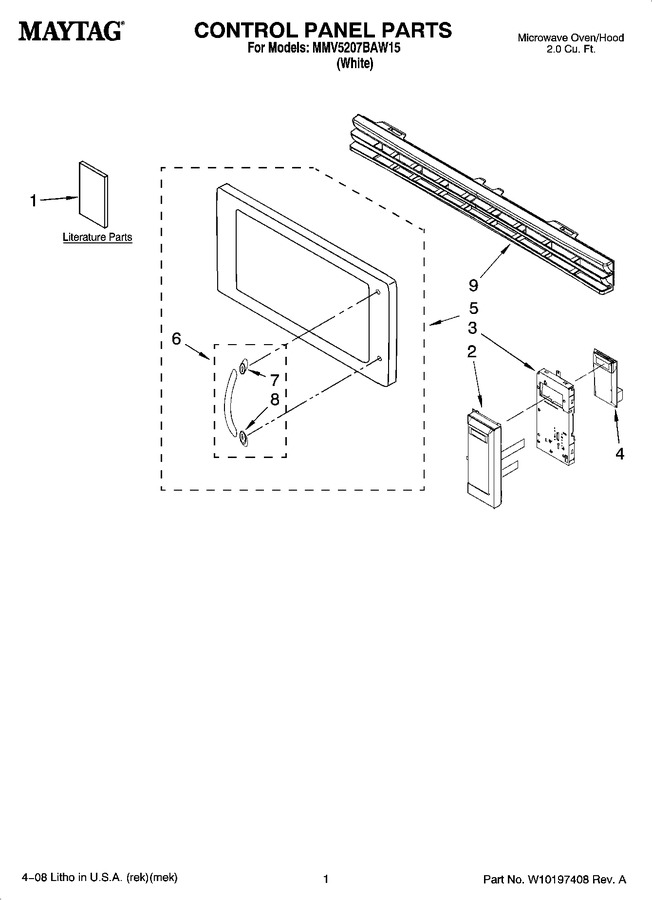

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177934 | U & C Guide |
|
- | |||||
| 1 | W10182043 | Tech Sheet, Slim |
|
- | |||||
| 2 | DE94-01386K | Panel Asy, Control Membrane, Lens And Bracket (white) |
|
- | |||||
| 3 | W10181469 | Bracket, Control |
|
- | |||||
| 4 | W10198000 | Microcomputer |
|
$ 220.11 | |||||
| 5 | W10197621 | Complete Door (white) |
|
$ 97.02 | |||||
| 6 | W10189509 | Handle, Door |
|
$ 70.88 | |||||
| 7 | W10189545 | Handle, Base Upper |
|
$ 20.30 | |||||
| 8 | W10189546 | Handle, Base Lower |
|
- | |||||
| 9 | DE64-01454B | Grille Assembly (white) |
|
- |
