SELECT A DIAGRAM

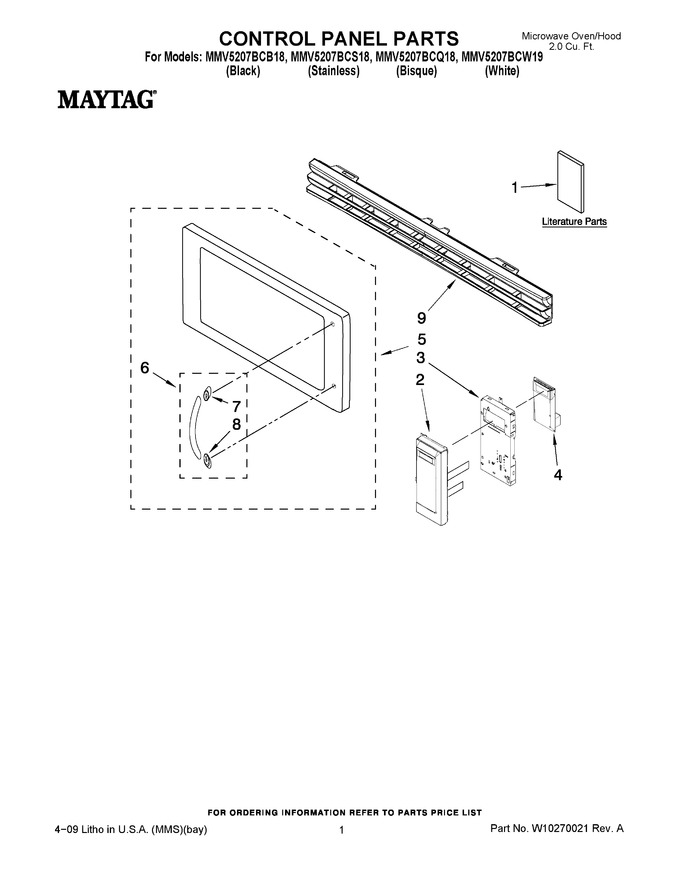

01 - Control Panel Parts


02 - Cabinet And Air Flow Parts


03 - Interior And Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10177934		U & C Guide		Appelez-nous	-
1	W10182045		Tech Sheet, Slim		Appelez-nous	-
2	555555		Panel Asy, Control Membrane, Lens And Bracket (black)   (Replaces: DE94-01386Q)				$ 151.94
2	DE94-01386R		Panel Asy, Control Membrane, Lens And Bracket (white)				$ 115.61
2	DE94-01386S		Panel Asy, Control Membrane, Lens And Bracket (stainless)				$ 101.98
2	DE94-01386T		Panel Asy, Control Membrane, Lens And Bracket (bisque)		Appelez-nous	-
3	W10181469		Bracket, Control		Appelez-nous	-
4	W10198000		Microcomputer				$ 220.11
5	W10198001		Complete Door (black)		Appelez-nous	-
5	W10199983		Complete Door (stainless)				$ 133.42
5	W10199982		Complete Door (bisque)		Appelez-nous	-
5	W10197621		Complete Door (white)				$ 97.02
6	W10189508		Handle, Door (black)		Appelez-nous	-
6	W10189509		Handle, Door (white)				$ 70.88
6	WPW10187840		Handle, Door (stainless)   (Replaces: W10187840)				$ 104.31
6	W10198002		Handle, Door (bisque)				$ 66.94
7	W10189545		Handle, Base Upper				$ 20.30
8	W10189546		Handle, Base Lower		Appelez-nous	-
9	DE64-01454A		Grille Assembly (black)		Appelez-nous	-
9	DE64-01454B		Grille Assembly (white)		Appelez-nous	-
9	555555		Grille Assembly (stainless)   (Replaces: DE64-01454D)				$ 151.94
9	DE64-01454C		Grille Assembly (bisque)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
