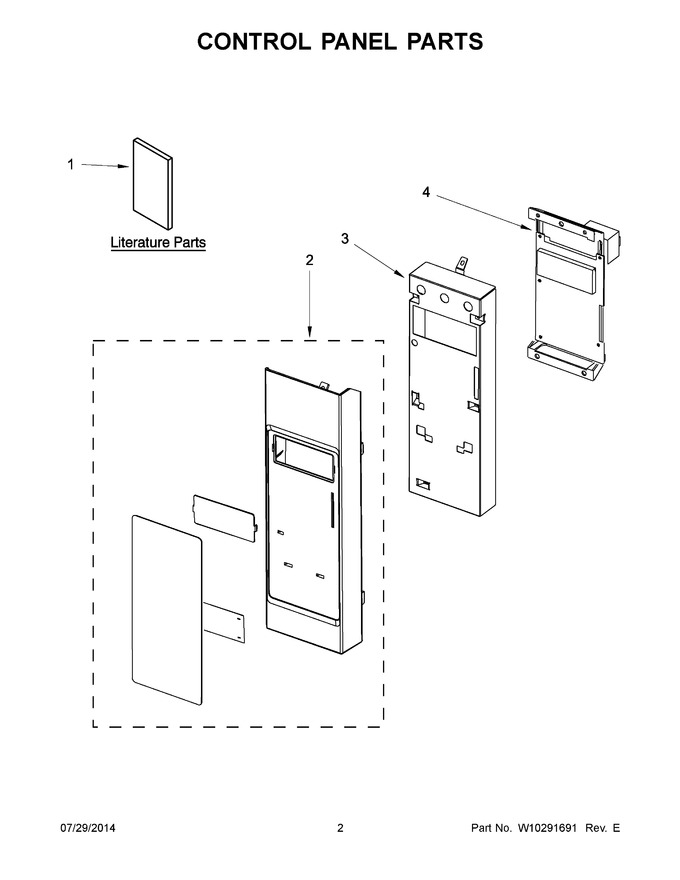

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238252 | Instructions, Installation |
|
- | |||||
| 2 | W10286818 | Panel, Control (white) |
|
$ 274.61 | |||||
| 3 | W10245199 | Bracket, Control |
|
$ 60.00 | |||||
| 4 | W10286816 | Microcomputer |
|
- | |||||
| 1A | W10274323 | Use And Care Guide |
|
- | |||||
| 1B | W10274324 | Quick Reference |
|
- | |||||
| 1C | W10272099 | Tech Sheet, Slim |
|
- | |||||
| 2A | W10286817 | Panel, Control (black) |
|
$ 206.65 | |||||
| 2B | W10286820 | Panel, Control (biscuit) |
|
- | |||||
| 2C | W10286819 | Panel, Control (stainless) |
|
$ 247.96 |
