Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 53001492 Control Panel/switch Asy (blk) 10 Appelez-nous -
2 53001397 Bracket, Control Panel 10 Appelez-nous -
3 53001476 Board, Control (pcb) 10 Appelez-nous -
4 53001462 Screw, Pan Head 10 Appelez-nous -
5 R0654183 Screw, Truss Hd 10 Appelez-nous -
6 53001344 Capacitor 10 Appelez-nous -
7 53001466 Door Assembly (blk) 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

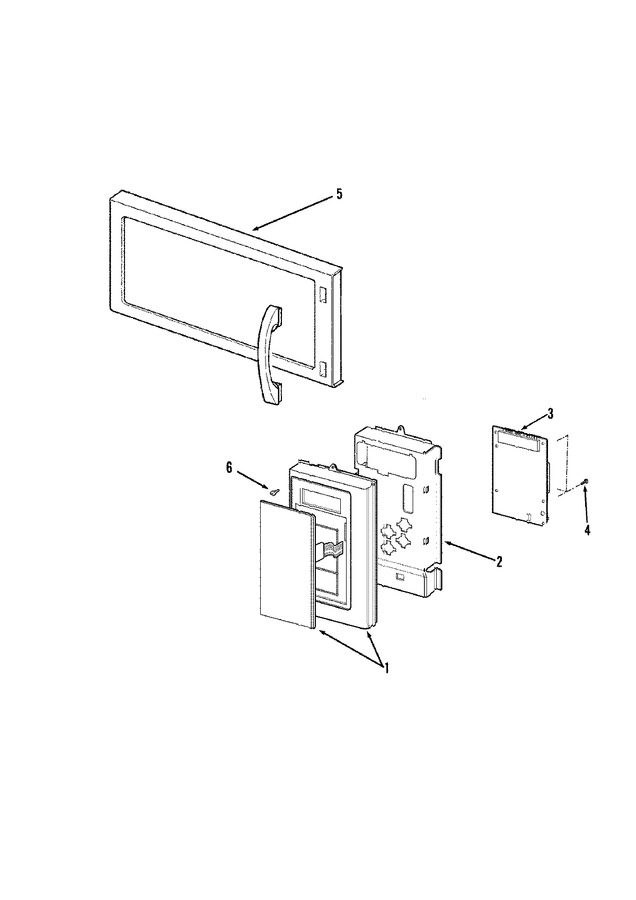

Diagram for MMV6178AAB
