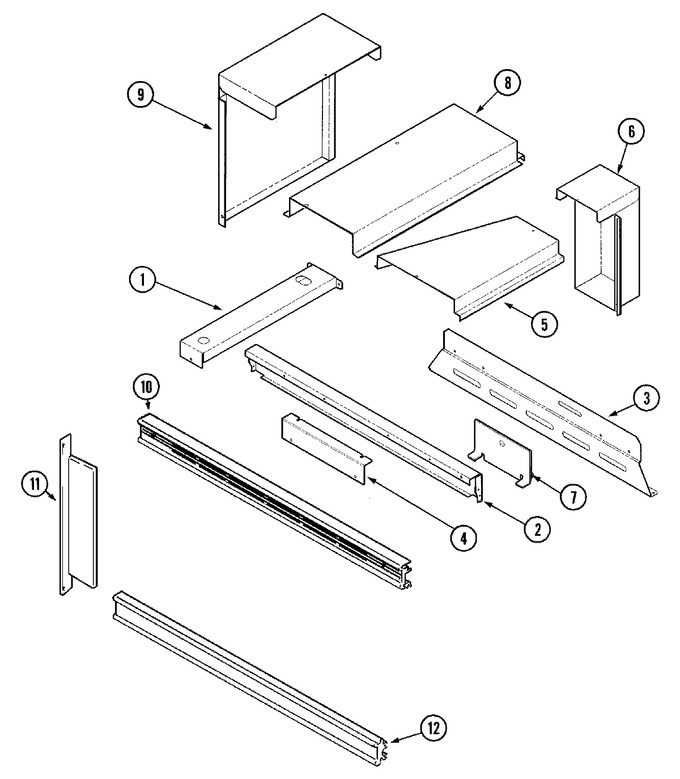

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003516 | Saddle, Rail | 10 |
|
- | ||||
| 2 | 71003517 | Saddle, Strut (front) | 10 |
|
- | ||||
| 3 | 71003518 | Saddle, Strut (rear) | 10 |
|
- | ||||
| 4 | 71003519 | Bracket, Locking (front) | 10 |
|
- | ||||
| 4 | 7101P337-60 | Screw | 10 |
|
- | ||||
| 5 | 71003520 | Hood, Intake (top) | 10 |
|
- | ||||
| 6 | 71003521 | Hood, Intake (rear) | 10 |
|
- | ||||
| 7 | 71003522 | Bracket, Locking (rear) | 10 |
|
- | ||||
| 8 | 71003523 | Hood, Exhaust (top) | 10 |
|
- | ||||
| 9 | 71003524 | Hood, Exhaust (side) | 10 |
|
- | ||||
| 10 | 74004737 | Extrusion, Top (wht) | 10 |
|
- | ||||
| 11 | 74004742 | Extrusion, Side (rt-wht) | 10 |
|
- | ||||
| 11 | 74004743 | Extrusion, Side (lt-wht) | 10 |
|
- | ||||
| 12 | 74004739 | Extrusion, Lower (wht) | 10 |
|
- | ||||
| 12 | 74004744 | Bracket, Filler (wht) | 10 |
|
- |
