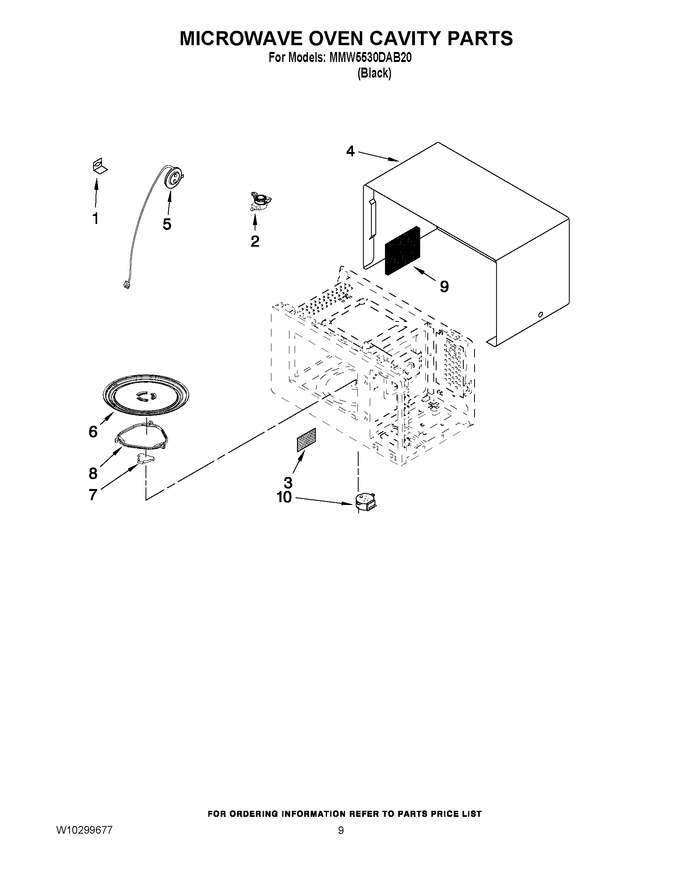

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE61-00097A		Bracket-sensor		Appelez-nous	-
2	DE47-20173A		Thermostat				$ 21.43
3	DE71-60449A		Cover-mgt		Appelez-nous	-
4	DE64-01341C		Outer, Case		Appelez-nous	-
5	DE32-60011A		Sensor, Humidity			Immediately	$ 86.27
6	DE74-20002C		Tray, Glass				$ 66.71
7	DE67-00214A		Shaft, Turntable		Appelez-nous	-
8	DE97-00401B		Ring, Turntable		Appelez-nous	-
9	DE63-90035G		Cushion-rubber		Appelez-nous	-
10	555555		Motor-drive   (Replaces: DE31-10154A)				$ 151.94
