SELECT A DIAGRAM

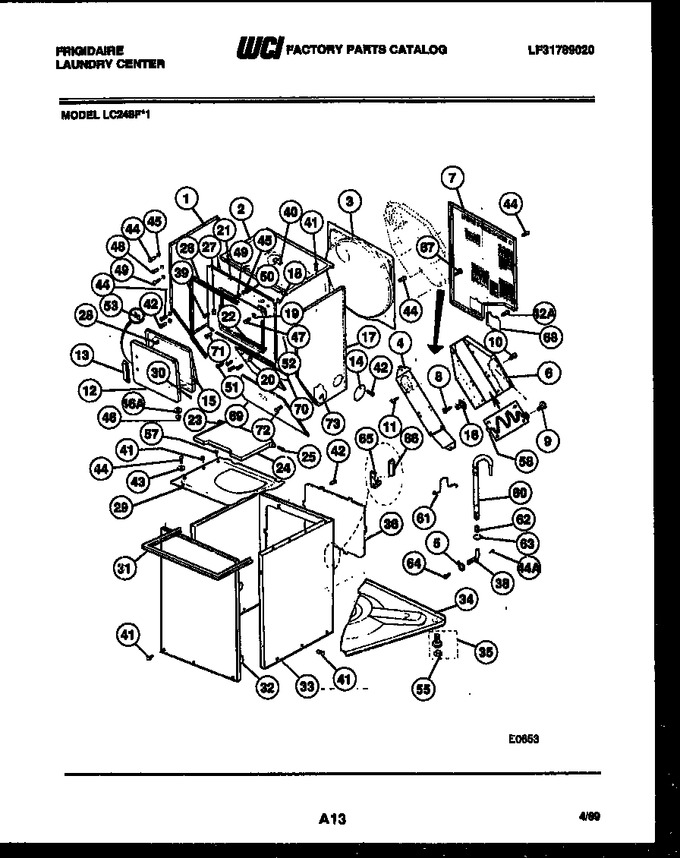

02 - Cabinet Parts And Heater


03 - Cabinet Parts And Heater


04 - Console, Control And Drum


05 - Dryer Motor, Blower And Belt


06 - Tubs, Water Valve And Lid Switch


07 - Washer Drive System And Pump


08 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08015811		Panel - L.h. Dryer (almond)		Appelez-nous	-
2	08027498		Pnl - Top Dryer (almond)		Appelez-nous	-
3	3017111		Panel-rear		Appelez-nous	-
4	08015820		Duct - Front		Appelez-nous	-
5	08004057		Clamp - Hose/coupler		Appelez-nous	-
6	08015854		Duct - Rear		Appelez-nous	-
7	3016426		Panel-ventilation		Appelez-nous	-
8	08006547		Screw		Appelez-nous	-
9	08004061		Screw (2)		Appelez-nous	-
10	08006547		Screw		Appelez-nous	-
11	08006547		Screw		Appelez-nous	-
12	08027654		Door - Outer (almond)		Appelez-nous	-
13	08027657		Handle - Door (almond)		Appelez-nous	-
14	02832585		Cover - Exhaust (almond)		Appelez-nous	-
15	08027662		Door - Inner (almond)		Appelez-nous	-
16	08015856		Thermostat - Safety		Appelez-nous	-
17	08015808		Pnl. - R.h. Dryer (almond)		Appelez-nous	-
18	00639710		Speed Clip		Appelez-nous	-
19	00639712		Hinge - Door Top		Appelez-nous	-
20	00639713		Hinge - Door Lower		Appelez-nous	-
21	3016438		Pnl - Front Dryer (almond)		Appelez-nous	-
22	00639378		Seal - Door		Appelez-nous	-
23	08015844		Screw		Appelez-nous	-
24	3200872		Lid - Washer (almond)		Appelez-nous	-
25	08015844		Screw		Appelez-nous	-
26	08015857		Trim Strip - Dryer		Appelez-nous	-
27	08027658		Spring - Latch		Appelez-nous	-
28	08006546		Screw - Handle (2)		Appelez-nous	-
29	3017114		Pnl - Top Washer (almond)		Appelez-nous	-
30	08004125		Screw - Door (2)		Appelez-nous	-
31	08015789		Trim Strip - Washer		Appelez-nous	-
32	02833352		Pnl Front (almond)		Appelez-nous	-
33	08007754		Cabinet - Washer (almond)		Appelez-nous	-
34	08004025		Base - Washer		Appelez-nous	-
35	3161045		Leveling Leg Assy. (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
