SELECT A DIAGRAM

01 - Body/cavity/elements


02 - Control Panel/door Assembly

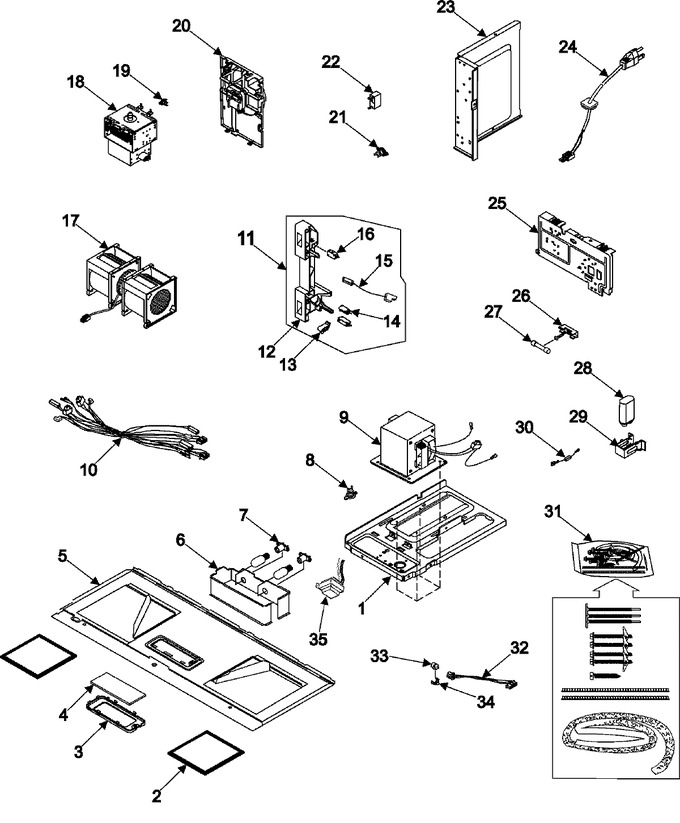

03 - Internal Controls/latch Asy/base


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE80-10109B		Base-plate		Appelez-nous	-
2	DE63-30011A		Filter-air			Immediately	$ 26.60
3	DE71-60385C		Cover-glass		Appelez-nous	-
4	DE67-40152A		Glass-cooktop Lamp		Appelez-nous	-
5	DE80-10108C		Base-bottom		Appelez-nous	-
6	DE61-50464A		Bracket-bottom Lamp		Appelez-nous	-
7	DE47-00006A		Holder-lamp				$ 17.58
8	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 151.94
10	DE39-00024A		Wire Harness-a		Appelez-nous	-
11	DE96-00154A		Assy Body Latch				$ 54.75
12	DE61-00249A		Body-latch				$ 43.88
13	DE66-90106B		Lever-switch Lower				$ 17.58
14	3405-001033		Switch-micro			Immediately	$ 17.58
15	DE39-40674A		Wire Harness-b		Appelez-nous	-
16	3405-001034		Switch, Micro (125/250 Vac)			Immediately	$ 14.85
18	YOM75P10ESS		Magnetron		Appelez-nous	-
19	555555		Thermostat   (Replaces: DE47-20007A)				$ 151.94
20	555555		Motor-fan   (Replaces: DE31-10177A)				$ 151.94
21	DE47-20020A		Thermostat				$ 17.58
22	DE59-50002A		Capacitor-motor			Immediately	$ 27.34
23	DE72-50084A		Duct-side		Appelez-nous	-
24	DE39-10102A		Power Cord		Appelez-nous	-
25	DE61-50463A		Bracket-air Guide		Appelez-nous	-
26	3602-001025		Holder, Fuse		Appelez-nous	-
27	ABC20		Cartridge, Fuse   (Replaces: 3601-001198)			Immediately	$ 10.31
28	2501-001035		C-oil			Immediately	$ 101.91
29	DE61-50120A		Bracket-hvc		Appelez-nous	-
30	DE91-70063D		Assy-h.v.d.   (Replaces: DE91-70063A)			Immediately	$ 15.89
31	DE92-90505D		Assy-hard Ware				$ 40.02
32	DE39-40678A		Wire Harness-s				$ 29.11
33	DE32-60013A		Sensor-gas				$ 94.70
34	DE61-90111A		Holder-sensor				$ 0.88
35	DE26-20155A		Trans-l.v		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
