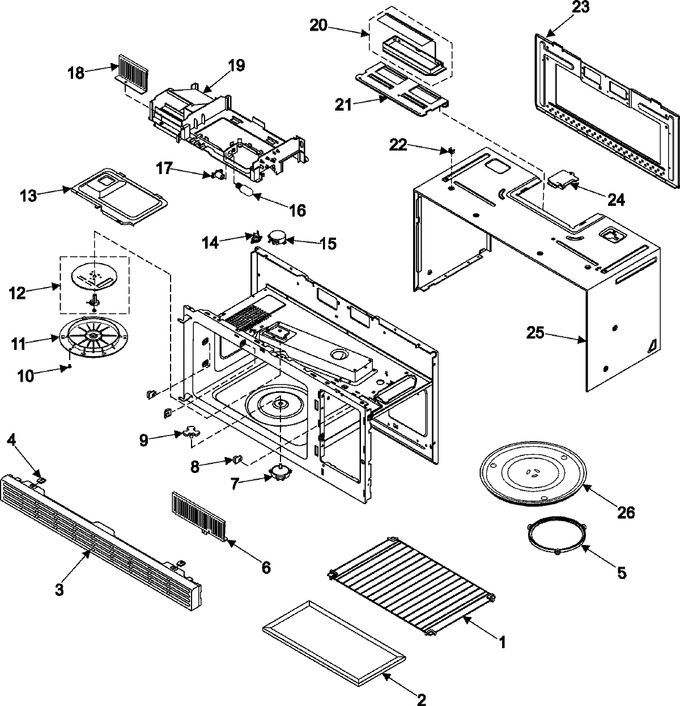

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE92-90499A | Assy-rack Wire |
|
- | |||||
| 2 | 555555 | Filter-charocal (Replaces: DE63-30016A) |
|
$ 151.94 | |||||
| 3 | DE64-00325B | Grille |
|
- | |||||
| 4 | DE65-00004A | Clip-grille |
|
$ 2.58 | |||||
| 5 | DE92-90495A | Assy-guide Roller |
|
$ 42.55 | |||||
| 6 | DE71-60384A | Cover-front |
|
- | |||||
| 7 | 555555 | Motor, Drive (Replaces: DE31-10172A) |
|
$ 151.94 | |||||
| 8 | DE61-90074B | Holder-rack |
|
- | |||||
| 9 | DE67-60012A | Coupler |
|
$ 17.58 | |||||
| 10 | DE66-20095B | Button-lock |
|
$ 17.58 | |||||
| 11 | DE71-60121A | Cover-stirrer |
|
$ 16.82 | |||||
| 12 | DE92-90496A | Assy-stirrer |
|
- | |||||
| 13 | DE61-50469A | Bracket-duct Upper |
|
- | |||||
| 14 | 555555 | Thermostat (Replaces: DE47-20196A) |
|
$ 151.94 | |||||
| 15 | DE31-10173A | Motor-drive |
|
$ 54.87 | |||||
| 16 | 4713-001013 | Lamp-incandescent |
|
Immediately | $ 18.00 | ||||
| 17 | DE47-00006A | Holder-lamp |
|
$ 17.58 | |||||
| 18 | DE61-50542A | Bracket-filter |
|
- | |||||
| 19 | DE72-50085A | Duct-upper |
|
- | |||||
| 20 | 555555 | Assy-hood Damper (Replaces: DE92-90242A) |
|
$ 151.94 | |||||
| 21 | DE61-50545A | Bracket-v/t Motor |
|
$ 17.58 | |||||
| 22 | DE92-90508A | Assy-holder Nut |
|
Immediately | $ 17.58 | ||||
| 23 | DE97-00258A | Assy-mounting Plate |
|
$ 54.87 | |||||
| 24 | DE61-50507A | Bracket-power Cord |
|
- | |||||
| 25 | DE70-30119J | Panel-outer |
|
- | |||||
| 26 | 555555 | Tray, Glass Cooking (Replaces: DE74-20015B) |
|
$ 151.94 |
