View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/cavity/elements

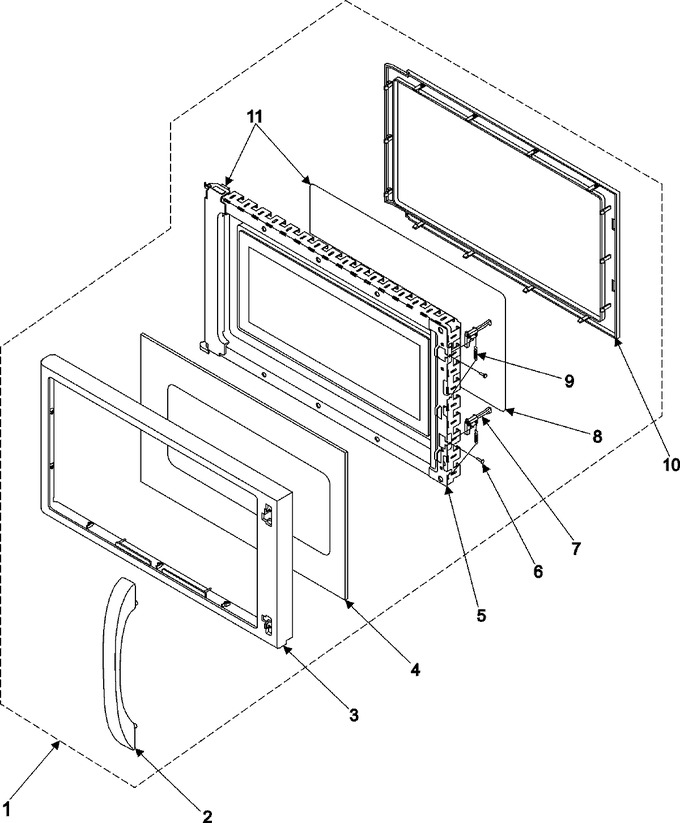

02 - Door Assembly
03 - Internal Controls/latch Asy/base
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-00595B | Assy Door |
|
- | |||||
| 2 | DE97-00250B | Assy-handle |
|
$ 35.86 | |||||
| 3 | DE64-00328B | Door-a |
|
- | |||||
| 4 | DE64-00444A | Screen-door(b) |
|
- | |||||
| 5 | DE94-00586B | Assy Door-e |
|
$ 154.13 | |||||
| 6 | DE60-60008A | Pin-hinge |
|
$ 0.85 | |||||
| 7 | DE64-00157A | Door-key |
|
$ 1.45 | |||||
| 8 | DE01-00091A | Film-door |
|
$ 13.32 | |||||
| 9 | DE61-00151A | Spring-key |
|
$ 44.47 | |||||
| 10 | DE64-00337A | Door-c |
|
$ 28.04 | |||||
| 11 | DE94-00603A | Assy Door-e(sub) |
|
- |
