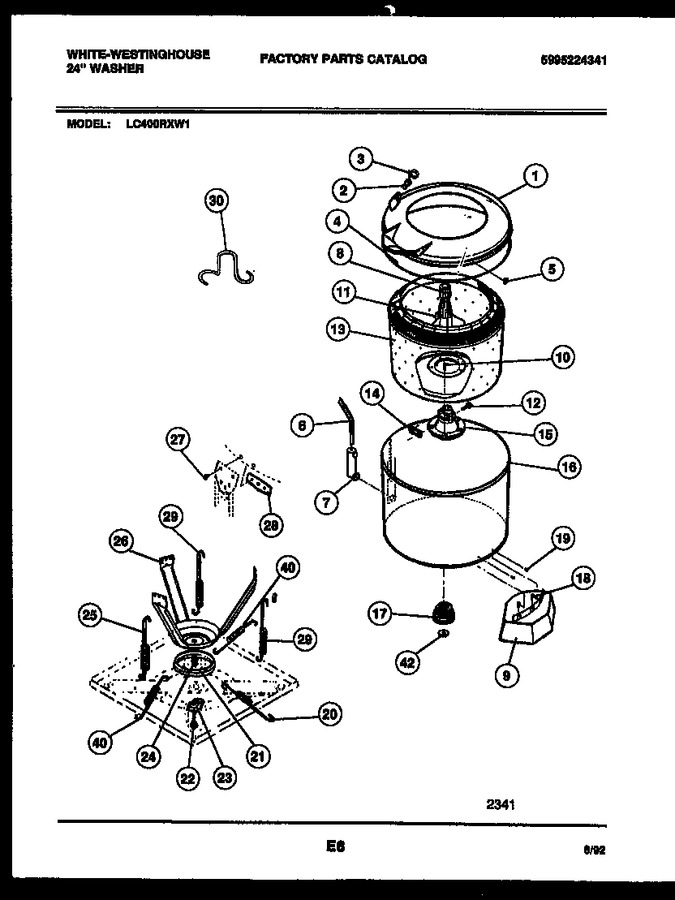

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303207010		Cover-tub		Appelez-nous	-
2	5308027515		Valve-check		Appelez-nous	-
3	08002358		Clamp-hose		Appelez-nous	-
4	5303161121		Seal-tub Cover		Appelez-nous	-
5	5303161199		Clip-cover (8)				$ 8.93
6	5303283047		Tube-pressure		Appelez-nous	-
7	5303283048		Air Bell		Appelez-nous	-
8	5303161122		Cap-agitator		Appelez-nous	-
9	5303283049		Shield-motor		Appelez-nous	-
10	137546400		Screw-trunnion (5)   (Replaces: 5303283293)				$ 28.35
11	5303283050		Agitator		Appelez-nous	-
12	137539500		Screw-lock Plate   (Replaces: 5308027517)				$ 20.24
13	131000900		Tub-spin		Appelez-nous	-
14	137107000		Lockplate   (Replaces: 5308001923)			Immediately	$ 26.94
15	5303283294		Trunnion		Appelez-nous	-
16	5303283051		Tub-splash		Appelez-nous	-
17	5308027536		Bearing Housing				$ 90.40
18	5303283052		Clip		Appelez-nous	-
19	5303283053		Screw		Appelez-nous	-
20	5303212125		Spring-horizontal (long)				$ 27.04
21	5308002385		Snubber Ring Assy				$ 54.86
22	5303161284		Shipping Bolt		Appelez-nous	-
23	5303161202		Shipping Block		Appelez-nous	-
24	3161203		Expansion Nut		Appelez-nous	-
25	5303161131		Spring-vertical (short)		Appelez-nous	-
26	5303283054		Leg & Dome		Appelez-nous	-
27	3161205		Screw-legs		Appelez-nous	-
28	5303269887		Plate-leg Bolt		Appelez-nous	-
29	5303161133		Spring-vertical (long)				$ 47.36
30	5303204987		Retainer-drain Hose		Appelez-nous	-
40	5308006573		Spring-horizontal				$ 31.33
42	5308002401		Washer			Immediately	$ 16.00
*63979	5373565000		Ring-agitator Cap				$ 24.59
*63979	5308006576		Adhesive-for Air Bell				$ 96.82
