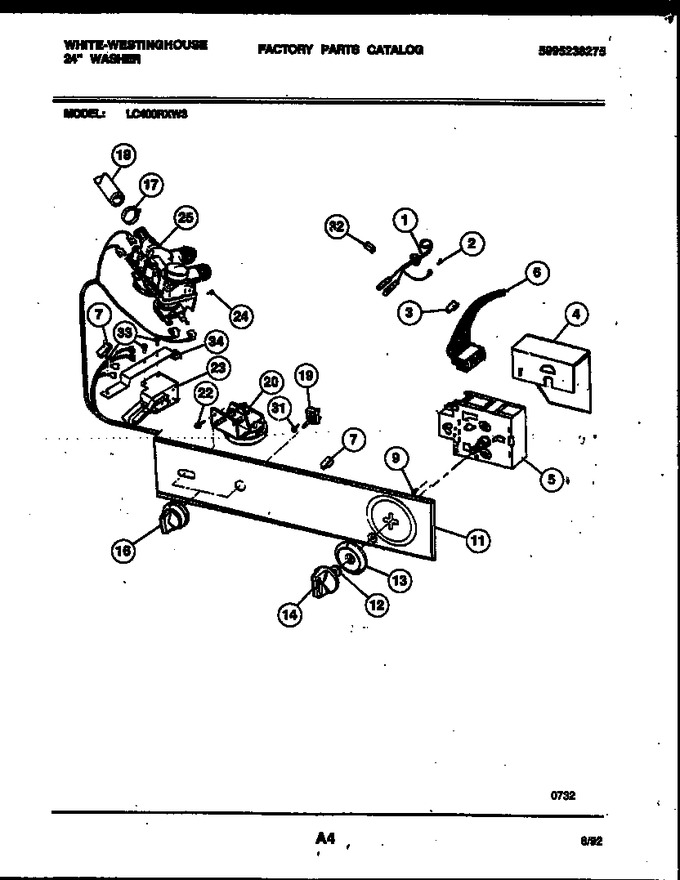

02 - Cabinet Parts
03 - Console And Control Parts
04 - Tub Detail
05 - Motor And Idler Arm Clutch
06 - Transmission Parts
07 - Portable Washer Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205929 | Service Cord |
|
- | |||||
| 2 | 3161275 | Screw - Ground |
|
- | |||||
| 3 | 08008454 | Clip-harness |
|
- | |||||
| 4 | 3205931 | Shield-timer |
|
- | |||||
| 5 | 5303284686 | Timer |
|
- | |||||
| 6 | 131160500 | Harness |
|
- | |||||
| 7 | 08008458 | Clip |
|
- | |||||
| 9 | 3161188 | Screw (2) |
|
- | |||||
| 11 | 131059810 | Panel-control |
|
- | |||||
| 12 | 5308015493 | Spacer - Timer |
|
$ 14.36 | |||||
| 13 | 5303280331 | Pointer-timer |
|
- | |||||
| 14 | 5303280332 | Knob-timer |
|
- | |||||
| 16 | 5303280333 | Knob-rotary (2) |
|
- | |||||
| 17 | F064154-004 | Clamp Hose |
|
- | |||||
| 18 | 3205937 | Hose-valve To Inlet |
|
- | |||||
| 19 | 5308014346 | Switch-water Temp |
|
- | |||||
| 20 | 131065500 | Switch-pressure |
|
- | |||||
| 22 | 5303285470 | Sems Screw (2) |
|
- | |||||
| 23 | 5303209725 | Lid Lock & Switch Assembly |
|
- | |||||
| 24 | 5303010202 | Sems Screw (2) |
|
$ 5.15 | |||||
| 25 | 134190200 | Water Valve (Replaces: 5303207418) |
|
Immediately | $ 153.09 | ||||
| 31 | 3161259 | Screw (2) |
|
$ 6.83 | |||||
| 32 | 08004657 | Clip-service Cord To Support |
|
- | |||||
| 33 | 3161240 | Screw-lid Lock (2) |
|
- | |||||
| 34 | 3018393 | Bracket-lid Lock & Sw Assembly |
|
- | |||||
| *75268 | 08027572 | Cord Hanger |
|
- | |||||
| *75268 | 5303284137 | Shield-pressure Switch |
|
- | |||||
| *75268 | 5303015671 | Screw-cord Hanger To Back Panel |
|
- | |||||
| *75269 | 3205934 | Shield-lid Lock |
|
- | |||||
| *75269 | 08011251 | Screw (4) Shield To Top |
|
- | |||||
| *75269 | 3205935 | U-clip (2) Shield To Side |
|
- | |||||
| 25A | 08008466 | Coil & Bracket Assy (2)-(part Of Ref No 25-but May Be Ordered Separately) (non-illustrated) |
|
- | |||||
| 25B | 5376138011 | Screen (2)-(part Of Ref No 25-but May Be Ordered Separately) (non-illustrated) |
|
- | |||||
| 33A | 08004660 | Screw-bracket/side Panel (2) |
|
- |
