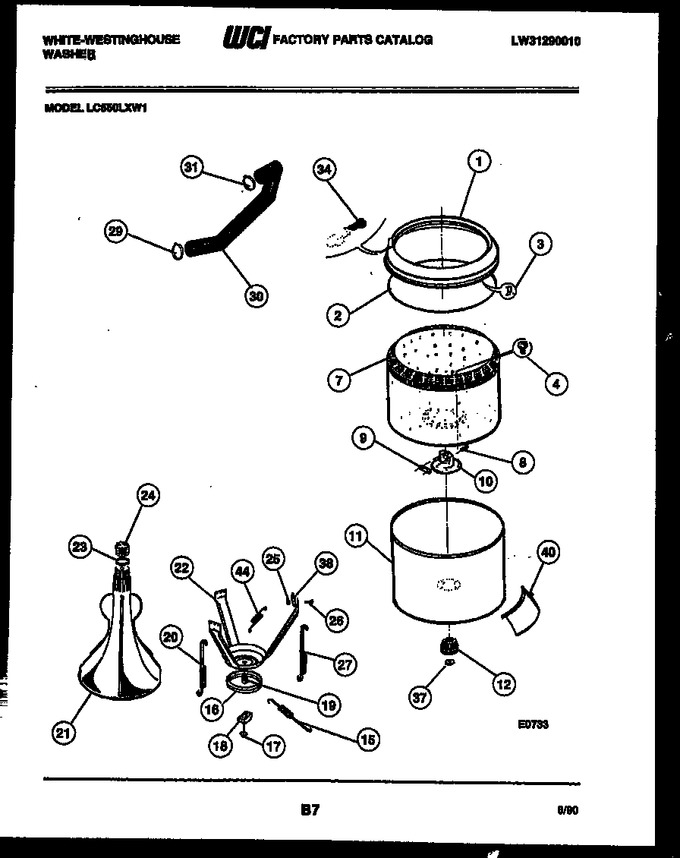

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F142025000 | Cover-splash Tub |
|
- | |||||
| 2 | F078611100 | Seal |
|
- | |||||
| 3 | F079975000 | Speed Clip (8) |
|
- | |||||
| 4 | F142055000 | Screw (5) |
|
- | |||||
| 7 | F142026000 | Spin Tub Assy.-(consists Of Spin Tub With Spin Tub Cover |
|
- | |||||
| 8 | F142056000 | Screw (2) |
|
- | |||||
| 9 | F140603000 | Lockplate |
|
- | |||||
| 10 | F140604100 | Trunnion |
|
- | |||||
| 11 | F141744000 | Splash Tub |
|
- | |||||
| 12 | F140581000 | Tub Bearing Assy (consists Of Tub Bearing Assembly, Spac |
|
- | |||||
| 15 | F078135000 | Spring-horizontal (2) |
|
- | |||||
| 16 | F130789000 | Snubber Ring |
|
- | |||||
| 17 | F137203000 | Screw-shipping |
|
- | |||||
| 18 | F077075000 | Block, Shipping |
|
- | |||||
| 19 | F077074000 | Nut-expansion |
|
- | |||||
| 20 | F137997100 | Spring, Short Vertical |
|
- | |||||
| 21 | F141970000 | Agitator |
|
- | |||||
| 22 | F079630000 | Leg And Dome Assy. |
|
- | |||||
| 23 | F073565000 | Gasket |
|
- | |||||
| 24 | F131203100 | Agitator Cap |
|
- | |||||
| 25 | F054287000 | Keps Nut (6) |
|
- | |||||
| 26 | F063532000 | Screw (6) |
|
- | |||||
| 27 | F137997000 | Spring-long Vert. (2) |
|
- | |||||
| 29 | F064154003 | Clamp, Hose |
|
- | |||||
| 30 | 3205938 | Hose-water Valve/inlet |
|
- | |||||
| 31 | F064154010 | Clamp-hose |
|
- | |||||
| 34 | F142046000 | Check Valve |
|
- | |||||
| 37 | F132835000 | Thrust Washer |
|
- | |||||
| 38 | F132729000 | Plate-leg Bolts (3) |
|
- | |||||
| 40 | F139128000 | Shield-motor-(fabricate Locally) |
|
- | |||||
| 44 | F079837000 | Spring-horizontal-rear |
|
- |
