Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3204444 Panel-manifold Appelez-nous -
2 358T197P07 Knob Top Valve (4) Appelez-nous -
3 3013818 Rod-main Top Supt. (2) Appelez-nous -
4 3011558 Brkt-main Top Hng Lh Appelez-nous -
5 3011559 Brkt-main Top Hng Rh Appelez-nous -
6 3934036 Pnl Main Top (wheat) Appelez-nous -
6 3934025 Pnl Main Top (almond) Appelez-nous -
6 WP3400872 Pnl Main Top (white)   (Replaces: 3934035) Special Order $ 6.95

7 3018432 Grate (4) Appelez-nous -
8 3131190 Cover-vent Appelez-nous -
*35207 612T124P01 Retainer - Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

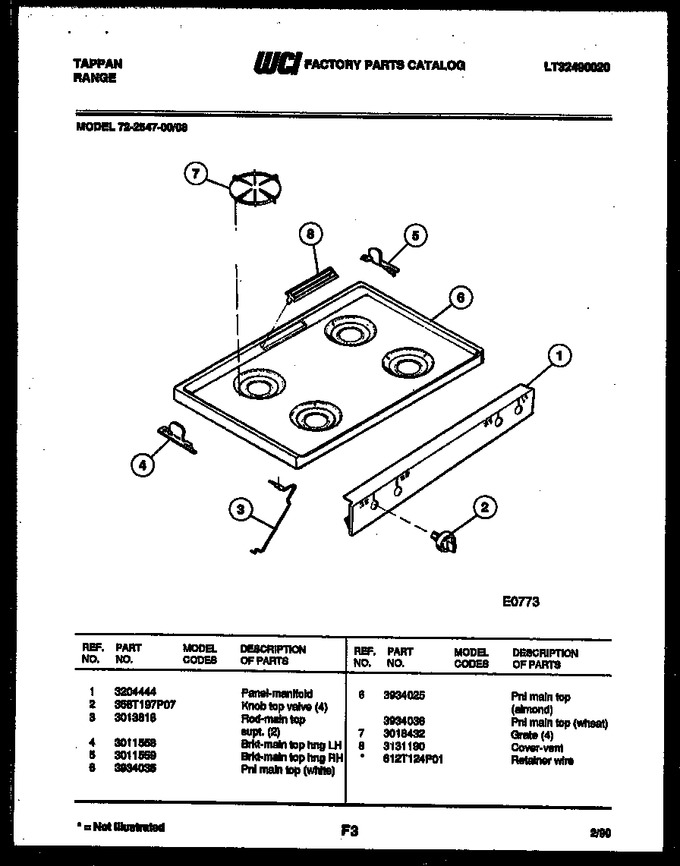

Diagram for 72-2547-00-08
