02 - Cabinet Parts


03 - Console And Control Parts


04 - Drain And Recirculate Parts


05 - Tubs And Water Inlet


06 - Transmission Parts


07 - Portable Washer Components

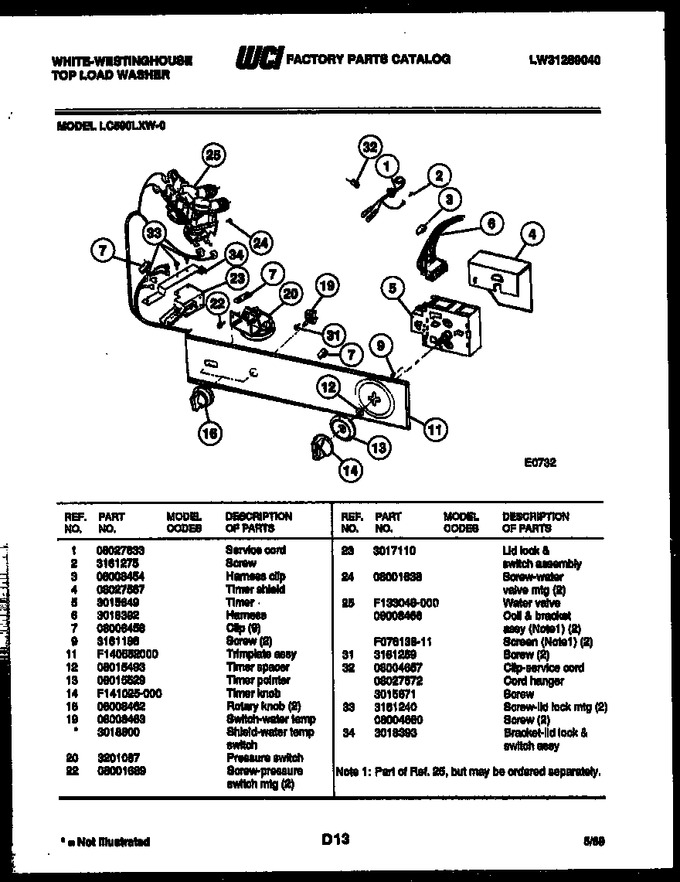

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08027633		Service Cord		Appelez-nous	-
2	3161275		Screw		Appelez-nous	-
3	08008454		Harness Clip		Appelez-nous	-
4	08027567		Timer Shield		Appelez-nous	-
5	3015649		Timer		Appelez-nous	-
6	3018392		Harness		Appelez-nous	-
7	08008458		Clip		Appelez-nous	-
9	3161188		Screw (2)		Appelez-nous	-
11	F140552000		Trimplate Assy		Appelez-nous	-
12	08015493		Timer Spacer		Appelez-nous	-
13	08015529		Timer Pointer		Appelez-nous	-
14	F141025-000		Timer Knob		Appelez-nous	-
16	08008462		Rotary Knob (2)		Appelez-nous	-
19	08008463		Switch-water Temp		Appelez-nous	-
20	3201087		Pressure Switch		Appelez-nous	-
22	08001689		Screw		Appelez-nous	-
23	3017110		Lid Lock & Switch Assembly		Appelez-nous	-
24	08001638		Screw-water Valve Mtg (2)		Appelez-nous	-
25	F133048-000		Water Valve		Appelez-nous	-
31	3161259		Screw (2)				$ 6.83
32	08004657		Clip-service Cord		Appelez-nous	-
33	3161240		Screw-lid Lock Mtg (2)		Appelez-nous	-
34	3018393		Bracket-lid Lock & Switch Assy		Appelez-nous	-
19A	3018800		Shield-water Temp Switch (non-illustrated)		Appelez-nous	-
25A	08008466		Coil & Bracket Assy (part Of Ref. 25, But May Be Orderedseparately.) (2)		Appelez-nous	-
25B	F076138-11		Screen (part Of Ref. 25, But May Be Ordered Separately.)(2)		Appelez-nous	-
32A	08027572		Cord Hanger		Appelez-nous	-
32B	3015671		Screw		Appelez-nous	-
33A	08004660		Screw (2)		Appelez-nous	-
