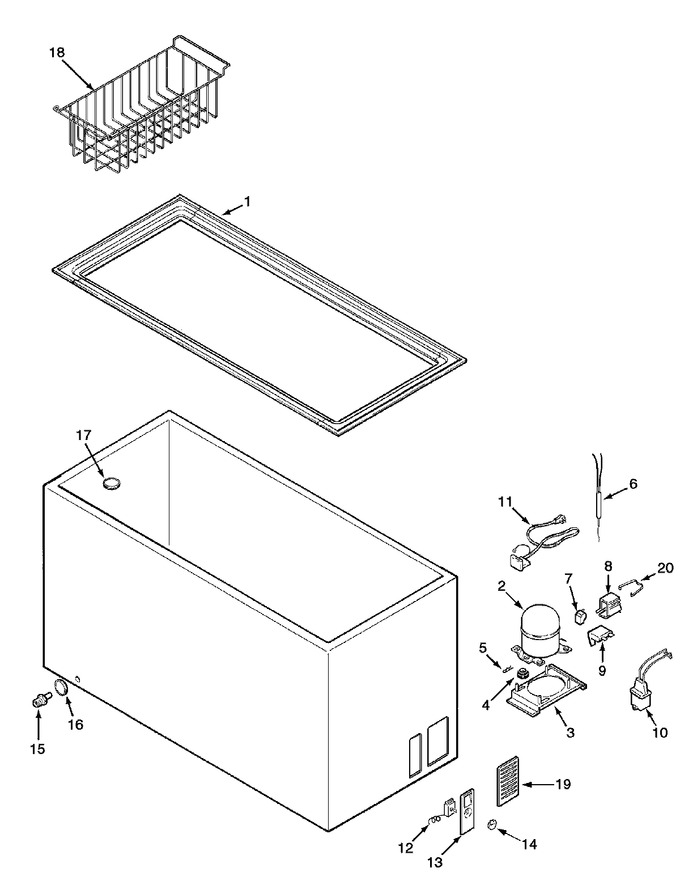

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-35010-004		Breaker Strip (back)   (Replaces: 68001185)	L0	Appelez-nous	-
1	4356641		Breaker Strip (frt.)   (Replaces: 68001277)	L0	Appelez-nous	-
1	W11045298		Breaker Strip (back)   (Replaces: 68001278)	L0	Appelez-nous	-
2	W10309994		Kit, Compressor (r134a)   (Replaces: 68001494)	L0		Immediately	$ 551.61
3	3-81556-001		Bracket, Base   (Replaces: 68001631)	L0	Appelez-nous	-
3	68001166		Base, Compressor	L0	Appelez-nous	-
4	Y09100025		Grommet, Compressor	L0	Appelez-nous	-
5	Y09100099		Clip, Compressor	L0	Appelez-nous	-
6	WPW10143759		Drier   (Replaces: 13900-1)	L0		Immediately	$ 27.70
7	68001368		Relay, Start	L0	Appelez-nous	-
8	2217635		Cover, Terminal   (Replaces: 68001478)	L0	Appelez-nous	-
9	68001479		Overload	L0	Appelez-nous	-
10	68001632		Capacitor, Run (w/wires)	L0	Appelez-nous	-
11	68001382		Wire Harness W/power Cord	L0	Appelez-nous	-
11	488946		Clip, Wire Harness   (Replaces: 68001243)	L0			$ 18.41
12	WP4-35940-001		Control, Temperature   (Replaces: 68001451)	L0			$ 148.16
13	68001147		Decal, Control Box	L0	Appelez-nous	-
13	3-24004-049		Screw   (Replaces: 68001170)	L0	Appelez-nous	-
13	W10682894		Box, Temp. Control   (Replaces: 68001633)	L0	Appelez-nous	-
14	68001452		Knob, Temp. Control	L0	Appelez-nous	-
15	W11663505		Adapter, Drain   (Replaces: Y09100110)	L0			$ 15.45
16	68001312		Cap, Drain	L0	Appelez-nous	-
17	68001312		Cap, Drain	L0	Appelez-nous	-
18	68001587		Rail, Basket	L0	Appelez-nous	-
18	68001588		Rivet	L0	Appelez-nous	-
18	Y09100020		Basket	L0	Appelez-nous	-
19	68001129		Panel, Access	L0	Appelez-nous	-
20	09100172		Clip, Terminal Cover	L0	Appelez-nous	-
21	68001112		Divider	L0	Appelez-nous	-
