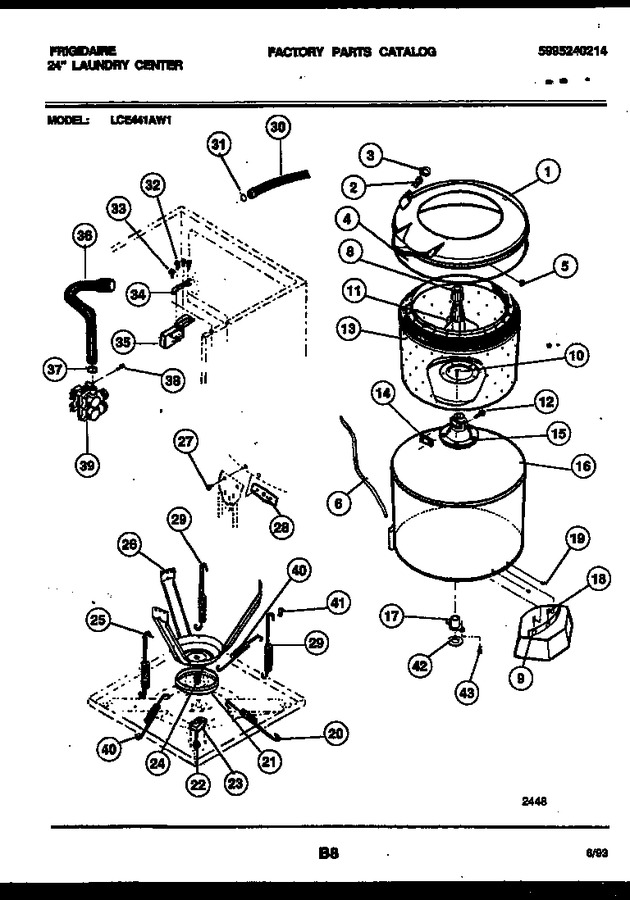

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205029 | Cover-tub |
|
$ 214.10 | |||||
| 2 | 5308027515 | Valve-check |
|
- | |||||
| 3 | F140887026 | Clamp-hose |
|
- | |||||
| 4 | 5303161121 | Seal-tub Cover |
|
- | |||||
| 5 | 5303161199 | Clip-cover (8) |
|
$ 8.93 | |||||
| 6 | 5304401845 | Tube-pressure (Replaces: 5303292722) |
|
$ 58.12 | |||||
| 8 | 5303161122 | Cap-agitator |
|
- | |||||
| 9 | 5303283049 | Shield-motor |
|
- | |||||
| 10 | 137546400 | Screw (5) (Replaces: 5303283293) |
|
$ 28.35 | |||||
| 11 | 5303283050 | Agitator |
|
- | |||||
| 12 | 137539500 | Screw (Replaces: 5308027517) |
|
$ 20.24 | |||||
| 13 | 5303284815 | Tub-spin |
|
- | |||||
| 14 | 137107000 | Lockplate (Replaces: 5308001923) |
|
Immediately | $ 26.94 | ||||
| 15 | 5303283294 | Trunnion |
|
- | |||||
| 16 | 131033000 | Tub-outer |
|
- | |||||
| 17 | 3204405 | Bearing-housing Assy |
|
Immediately | $ 97.81 | ||||
| 18 | 5303283052 | Clip |
|
- | |||||
| 19 | 5303283053 | Screw |
|
- | |||||
| 20 | 5308006573 | Spring-horizontal-long |
|
$ 31.33 | |||||
| 21 | 5308002385 | Snubber Ring |
|
$ 54.86 | |||||
| 22 | 5303161284 | Bolt- Shipping |
|
- | |||||
| 23 | 5303161202 | Block-shipping |
|
- | |||||
| 24 | 3161203 | Nut |
|
- | |||||
| 25 | 5303161131 | Spring-vertical (short) |
|
- | |||||
| 26 | 5303283054 | Leg & Dome |
|
- | |||||
| 27 | 3161205 | Screw |
|
- | |||||
| 28 | 5303269887 | Plate (3) |
|
- | |||||
| 29 | 5303161133 | Spring-vertical-short |
|
$ 47.36 | |||||
| 30 | 5303280320 | Hose-inlet (2) |
|
- | |||||
| 31 | 5303161296 | Washer (4) |
|
Immediately | $ 2,372.96 | ||||
| 32 | 08001578 | Screw |
|
- | |||||
| 33 | 5303285470 | Screw |
|
- | |||||
| 34 | 3205035 | Bracket-lid Lock |
|
- | |||||
| 35 | 3205033 | Lid Lock |
|
$ 40.69 | |||||
| 36 | 3205034 | Hose-valve To Inlet |
|
- | |||||
| 37 | 5300641545 | Clamp |
|
- | |||||
| 38 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 39 | 134190200 | Valve-water (Replaces: 5303207418) |
|
Immediately | $ 153.09 | ||||
| 40 | 5308006573 | Spring-horizontal (2) |
|
$ 31.33 | |||||
| 41 | 3161288 | Clip-harness To Leg |
|
- | |||||
| 42 | 5308002401 | Washer |
|
Immediately | $ 16.00 | ||||
| 43 | 3205150 | Screw |
|
$ 3.55 | |||||
| *76935 | 5373565000 | Gasket-agitator Cap (parts Not Illustrated And Optional |
|
$ 24.59 |
