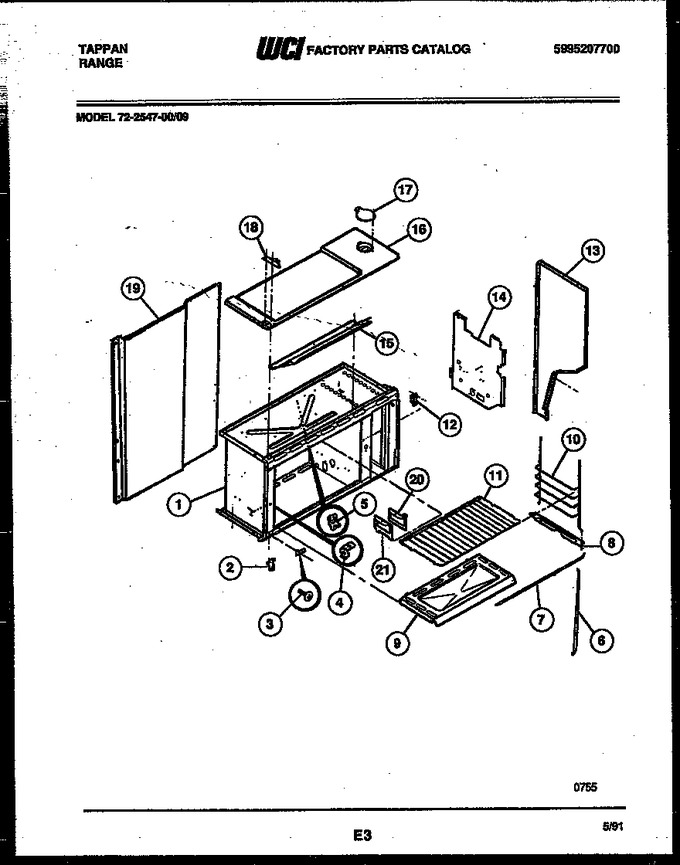

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303051166		Hinge Dr Bottom		Appelez-nous	-
3	636T070P02		Screw-btm Hng		Appelez-nous	-
4	08011665		Plate Btm Hinge		Appelez-nous	-
5	3011805		Clip - Thermo Bulb		Appelez-nous	-
6	3201722		Seal Door Side (2)		Appelez-nous	-
7	3201721		Seal-door Top & Btm (2)		Appelez-nous	-
8	3131616		Glide-oven Btm (2)		Appelez-nous	-
9	3200488		Bottom-oven		Appelez-nous	-
10	280T021P05		Glide Ovn Rack (2)		Appelez-nous	-
11	08011675		Rack-ovn (flat)		Appelez-nous	-
12	08011680		Catch-door		Appelez-nous	-
13	3051261		Pnl Bodysd-lh-(almond)		Appelez-nous	-
13	3051263		Pnl Bodysd-rh-(white)		Appelez-nous	-
13	3051264		Pnl Bodysd-rh-(almond)		Appelez-nous	-
13	3051262		Pnl Bodysd-lh-(wheat)		Appelez-nous	-
14	5303208706		Shield-wool-o/u Sd		Appelez-nous	-
15	3200505		Flue, Back		Appelez-nous	-
17	08067732		Cover-outlet (hood)		Appelez-nous	-
18	3131613		Hinge Cover Top		Appelez-nous	-
19	3131567		Back, Main		Appelez-nous	-
20	3200506		Gasket		Appelez-nous	-
21	3200442		Cover Lt Open. O/u		Appelez-nous	-
*50718	691T007P01		Strike U/o Dr Alig		Appelez-nous	-
*50719	3204440		Alum-foil		Appelez-nous	-
13A	3051265		Pnl Bodysd-rh-(wheat)		Appelez-nous	-
13A	3051260		Pnl Bodysd-lh-(white)		Appelez-nous	-
15A	3131625		Pnl Top		Appelez-nous	-
19A	3200500		Brkt-connec Mtg (non-illustrated)		Appelez-nous	-
19B	3200509		Insul. O/u Uppr Oven (non-illustrated)		Appelez-nous	-
19C	3200511		Insul. Wool (non-illustrated)		Appelez-nous	-
4A	3200519		Retainer Ovn Burnr Upper (non-illustrated)		Appelez-nous	-
