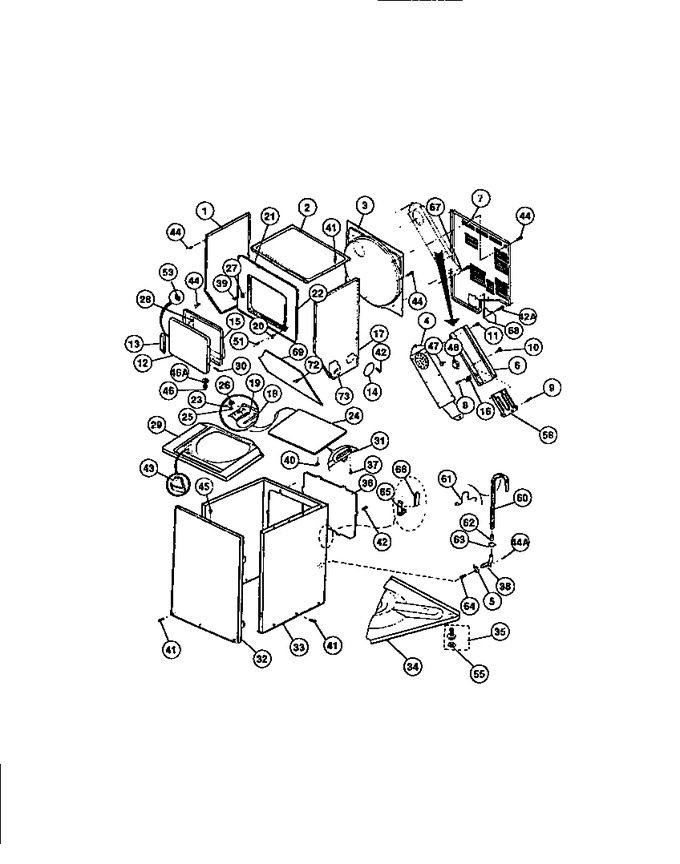

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209762 | Panel-side Lh (almond) |
|
- | |||||
| 2 | 3204949 | Panel-top (almond) |
|
- | |||||
| 3 | 3017111 | Panel-rear |
|
- | |||||
| 4 | 08015820 | Panel-front |
|
- | |||||
| 5 | 08004057 | Clamp |
|
- | |||||
| 6 | 3205055 | Duct Rear |
|
- | |||||
| 7 | 3016426 | Panel-ventilation |
|
- | |||||
| 8 | 3161233 | Screw |
|
- | |||||
| 9 | 3161234 | Screw |
|
- | |||||
| 10 | 3161233 | Screw-heater (4) |
|
- | |||||
| 11 | F141477-000 | Screw-duct (10) |
|
- | |||||
| 12 | 3016429 | Door-outer (almond) |
|
- | |||||
| 13 | 3016432 | Handle-door (almond) |
|
- | |||||
| 14 | 3204953 | Cover-exhaust (almond) |
|
- | |||||
| 15 | 3016435 | Door-inner (almond) |
|
- | |||||
| 16 | 08015853 | Thermostat-safety |
|
- | |||||
| 17 | 5303209764 | Panel-side Rh (almond) |
|
- | |||||
| 18 | 3205942 | Hinge Bar-lh |
|
- | |||||
| 19 | 3204957 | Gasket-hinge (2) |
|
- | |||||
| 20 | 3204959 | Hinge-door (2) |
|
- | |||||
| 21 | 3204963 | Panel-front (almond) |
|
- | |||||
| 22 | 3204964 | Seal-door |
|
- | |||||
| 23 | 3204359 | Screw (4) |
|
- | |||||
| 24 | 3204966 | Lid (almond) |
|
- | |||||
| 25 | 08002408 | Washer (4) |
|
- | |||||
| 26 | 3204362 | Grommet-hinge |
|
- | |||||
| 27 | 3016439 | Spring-latch |
|
- | |||||
| 28 | 3161244 | Screw |
|
- | |||||
| 29 | 5303207100 | Panel-top (almond) |
|
- | |||||
| 30 | 3161187 | Screw |
|
- | |||||
| 31 | 131390000 | Strike-lid (Replaces: 3204970) |
|
$ 55.19 | |||||
| 32 | 3204975 | Panel-front (almond) |
|
- | |||||
| 33 | 3203979 | Cabinet (almond) |
|
- | |||||
| 34 | 3161044 | Base |
|
- | |||||
| 35 | 3937004 | Leg Leveling (4) |
|
- | |||||
| 36 | 3204980 | Panel-rear |
|
- | |||||
| 37 | 3204368 | Screw |
|
$ 13.01 | |||||
| 38 | 3161452 | Coupler |
|
$ 34.39 | |||||
| 39 | 3161237 | Rivet |
|
- | |||||
| 40 | 3204981 | Bumper (2) |
|
- | |||||
| 41 | 08001578 | Screw (9) |
|
- | |||||
| 42 | 05436605 | Screw |
|
- | |||||
| 43 | 3204983 | Dispenser-bleach |
|
- | |||||
| 44 | 08011280 | Screw |
|
- | |||||
| 45 | 3204373 | Pin |
|
$ 4.99 | |||||
| 46 | 3016440 | Pin-hinge (2) |
|
- | |||||
| 47 | 3204269 | Screw |
|
- | |||||
| 48 | 5303208647 | Thermal Limiter |
|
- | |||||
| 51 | 08006549 | Screw |
|
- | |||||
| 53 | 3016442 | Plate-strike |
|
$ 4.87 | |||||
| 55 | 3004083 | Pad-legs (4) |
|
- | |||||
| 57 | 3161185 | Screw |
|
- | |||||
| 58 | 08015795 | Heater Assembly |
|
- | |||||
| 60 | 3205936 | Hose-drain |
|
- | |||||
| 61 | 3204987 | Retainer-hose |
|
- | |||||
| 62 | 5303206866 | Bushing |
|
- | |||||
| 63 | F064154-013 | Clamp |
|
- | |||||
| 64 | 08014555 | Check Valve |
|
- | |||||
| 65 | 3161252 | Bracket-capacitor |
|
- | |||||
| 66 | 08014903 | Capacitor |
|
- | |||||
| 67 | 3161233 | Screw |
|
- | |||||
| 68 | 08015822 | Cover-terminal |
|
- | |||||
| 69 | 3204992 | Panel-access (almond) |
|
- | |||||
| 72 | 08011318 | Screw |
|
- | |||||
| 73 | 3161240 | Screw |
|
- | |||||
| *72760 | 3281110 | Resistor 4.4k Ohms-dryer Timer |
|
- | |||||
| *72761 | 3004951 | Resistor 2.4k Ohms-fabric Selector Switch |
|
- | |||||
| *72762 | 5303206879 | Heater-thermostat |
|
- | |||||
| *72763 | 3161057 | Insulation-rear And Vent Panels |
|
- | |||||
| 18A | 3205943 | Hinge Bar-rh |
|
- | |||||
| 42A | 3161233 | Screw |
|
- | |||||
| 44A | F144005-000 | Screw |
|
- | |||||
| 46A | 5303208633 | Washer |
|
- | |||||
| 63A | 3161250 | Tie-cable (non-illustrated) |
|
- |
