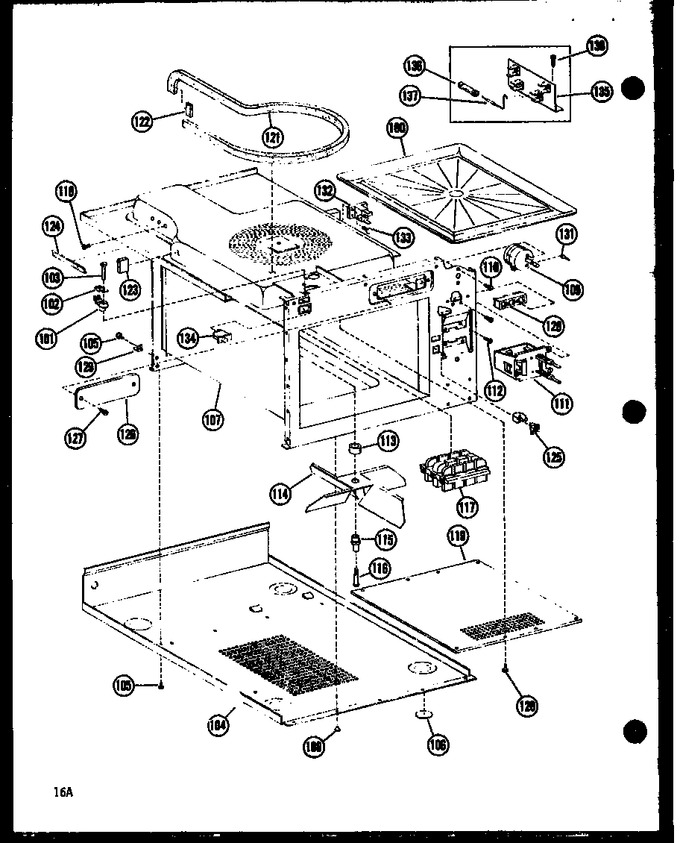

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	D7191101		Oven Tray		Appelez-nous	-
101	C3696903		Bushing		Appelez-nous	-
102	C3696902		Bushing		Appelez-nous	-
103	A3211102		Pin-door Stop		Appelez-nous	-
104	C3694401		Weldment, Base Pan, Bottom		Appelez-nous	-
105	M0230015		Screw		Appelez-nous	-
106	A3213001		Foot		Appelez-nous	-
107	D7187404		Oven Cavity Wld		Appelez-nous	-
108	A4539601		Pop Rivet		Appelez-nous	-
109	C8705201		Timer		Appelez-nous	-
110	M0202502		Screw		Appelez-nous	-
111	C3695502		Switch-start,stop		Appelez-nous	-
112	M0241205		Screw		Appelez-nous	-
113	B5704202		Bushing		Appelez-nous	-
114	C3609102		Fan Blade, Stirrer		Appelez-nous	-
115	A3214801		Bearing		Appelez-nous	-
116	A3214902		Shoulder Screw		Appelez-nous	-
117	C3694501		Filter-wave Guide		Appelez-nous	-
118	M0253504		Screw		Appelez-nous	-
119	D7206601		Grease Shield		Appelez-nous	-
120	M0130101		Clip K		Appelez-nous	-
121	A3030308		Gasket		Appelez-nous	-
122	A3030323		Gasket, Cond. Base Pan Flange-		Appelez-nous	-
123	A3030333		Gasket (1=1ft.)		Appelez-nous	-
124	A3030302		Gasket		Appelez-nous	-
125	M0100702		Catch, Door Strike		Appelez-nous	-
126	B5700201		Access Panel		Appelez-nous	-
127	M0230814		Screw		Appelez-nous	-
128	B5677203		Terminal Block		Appelez-nous	-
129	M0320901		Terminal		Appelez-nous	-
131	R0191014		Spring Clip		Appelez-nous	-
132	B5688701		Relay, Time Delay		Appelez-nous	-
133	M0234117		Screw		Appelez-nous	-
134	B5674702		Switch-sensing		Appelez-nous	-
135	B5722001		Terminal Board A		Appelez-nous	-
136	M0305401		Resistor Fuse Kit		Appelez-nous	-
137	M0308101		Fuse				$ 9.87
138	M0230015		Screw		Appelez-nous	-
