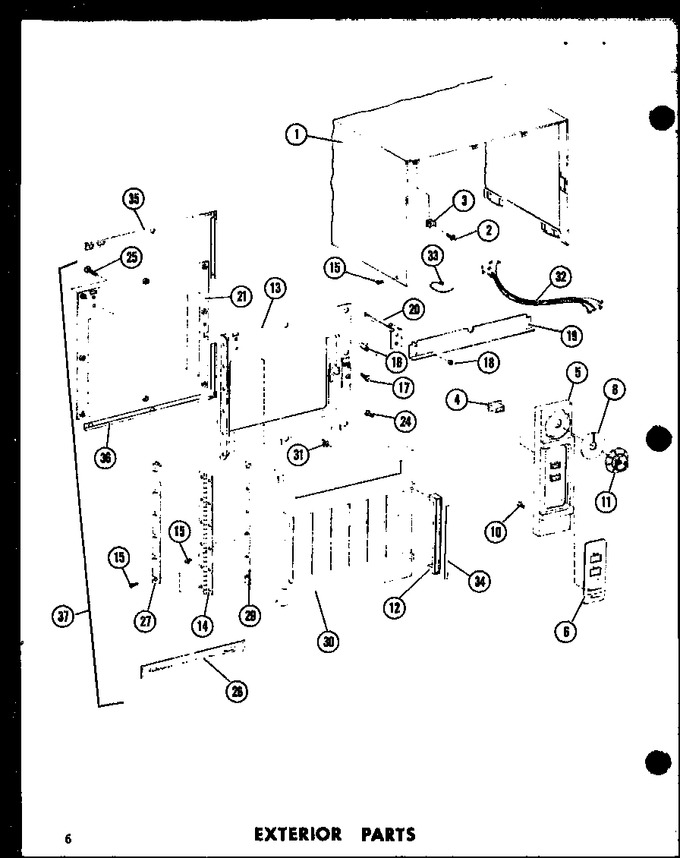

01 - Exterior Parts


02 - Interior Parts


03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7189404		Wrapper-oc		Appelez-nous	-
2	M0213516		Screw K		Appelez-nous	-
3	A3211801		Spacer, Speed Nut		Appelez-nous	-
4	C3695903		Button		Appelez-nous	-
5	D7187306		Escutcheon-control		Appelez-nous	-
6	B5734601		Insert-control		Appelez-nous	-
8	B5702801		Insert K		Appelez-nous	-
10	M0253418		Screw		Appelez-nous	-
11	C8704910		Knob-timer		Appelez-nous	-
12	C3695702		Handle-door		Appelez-nous	-
13	D7188303		Door Assy		Appelez-nous	-
14	B5700001		Hinge		Appelez-nous	-
15	M0230015		Screw		Appelez-nous	-
16	M5705501		Latch, Door		Appelez-nous	-
17	M0228016		Screw		Appelez-nous	-
18	A4539602		Pop Rivet		Appelez-nous	-
19	C8707401		Bracket-door A		Appelez-nous	-
20	R0157117		Door Arm Assembly		Appelez-nous	-
21	D7210801		Inner Door		Appelez-nous	-
24	M0253719		Screw-handle		Appelez-nous	-
25	M0201004		Screw		Appelez-nous	-
25	M0253717		Screw		Appelez-nous	-
26	B5734701		Nameplate		Appelez-nous	-
27	C3695201		Support-hinge		Appelez-nous	-
29	A3223301		Tap Strip-door		Appelez-nous	-
30	D7235101		Door-outer		Appelez-nous	-
31	M0100801		Strike,door Catch		Appelez-nous	-
32	D7237001		Wiring Harness		Appelez-nous	-
33	WPW10339879		Tie K   (Replaces: M0321201)				$ 7.11
34	B5700802		Insert-handle		Appelez-nous	-
35	C8707901		Trim		Appelez-nous	-
36	C8708001		Trim		Appelez-nous	-
37	D7224805		Door Assy		Appelez-nous	-
